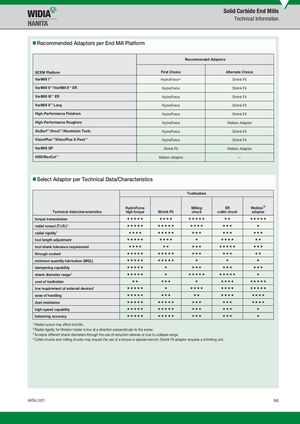

- Recommended Adaptors per End Mill Platform
Recommended Adaptors
| SCEM Platform | First Choice | Alternate Choice | |
| VariMill I™ | HydroForce™ | Shrink Fit | |
| VariMill II™/VariMill II™ ER | HydroForce | Shrink Fit | |
| VariMill III™ ER | HydroForce | Shrink Fit | |
| VariMill II™ Long | HydroForce | Shrink Fit | |
| High-Performance Finishers | HydroForce | Shrink Fit | |
| High-Performance Roughers | HydroForce | Weldon Adaptor | |
| AluSurf™/Arcut™/Aluminium Tools | HydroForce | Shrink Fit | |
| VisionPlus™/VisionPlus X-Feed ™ | HydroForce | Shrink Fit | |
| VariMill GP | Shrink Fit | Weldon Adaptor | |
| HSS/WavCut™ | Weldon Adaptor | — |
- Select Adaptor per Technical Data/Characteristics
Toolholders
| HydroForce | Milling | ER | Weldon® | |||
| Technical data/characteristics high torque | Shrink Fit | chuck | collet chuck | adaptor | ||
| torque transmission | | | | | | |
| radial runout (T.I.R.) 1 | | | | | | |
| radial rigidity2 | | | | | ||
| tool length adjustment | | | | | | |
| tool shank tolerance requirement | | | | | | |
| through coolant | | | | | | |
| minimum quantity lubrication (MQL) | | | | | | |
| dampening capability | | | | | | |
| shank diameter range 3 | | | | | | |
| cost of toolholder | | | | | | |
| low requirement of external devices4 | | | | | | |
| ease of handling | | | | | | |
| dust resistance | | | | | | |
| high-speed capability | | | | | | |
| balancing accuracy | | | | | |
1 Radial runout may affect tool life. 2 Radial rigidity for Weldon holder is low at a direction perpendicular to the screw. 3 Accepts different shank diameters through the use of reduction sleeves or due to collapse range. 4 Collet chucks and milling chucks may require the use of a torque or special wrench; Shrink Fit adaptor requires a shrinking unit.
