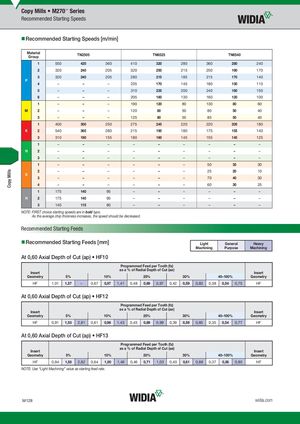

- Material Overview • DIN
- Recommended Starting Speeds [m/min]
| Material Group | TN2505 | TN6525 | TN6540 | ||||||
| 1 | 550 | 420 | 360 | 410 | 320 | 280 | 360 | 280 | 240 |
| 2 | 320 | 240 | 205 | 320 | 250 | 215 | 250 | 190 | 170 |
| P 3 | 320 | 240 | 205 | 280 | 215 | 185 | 215 | 170 | 140 |
| 4 | – | – | – | 235 | 170 | 145 | 180 | 130 | 110 |
| 5 | – | – | – | 310 | 235 | 200 | 240 | 180 | 150 |
| 6 | – | – | – | 205 | 160 | 130 | 160 | 120 | 100 |
| 1 | – | – | – | 190 | 120 | 80 | 130 | 80 | 60 |
| M 2 | – | – | – | 120 | 80 | 50 | 80 | 50 | 40 |
| 3 | – | – | – | 125 | 80 | 55 | 85 | 50 | 40 |
| 1 | 400 | 300 | 250 | 275 | 245 | 220 | 220 | 205 | 180 |
| K 2 | 540 | 365 | 280 | 215 | 190 | 180 | 175 | 155 | 140 |
| 3 | 310 | 190 | 155 | 180 | 160 | 145 | 155 | 145 | 125 |
| 1 | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 50 | 35 | 30 |
| 2 | – | – | – | – | – | – | 25 | 20 | 10 |
| S 3 | – | – | – | – | – | – | 70 | 40 | 30 |
| 4 | – | – | – | – | – | – | 60 | 30 | 25 |
| 1 | 175 | 140 | 95 | – | – | – | – | – | – |
| H 2 | 175 | 140 | 95 | – | – | – | – | – | – |
| 3 | 140 | 115 | 80 | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
| ecomm | ne arng | es [mm] | Lig Machi | ht ning | General Purpose | Heavy Machining | ||||||
| 0,60 Axia Insert | l Depth of Cut (a | p) • HF10 | Prog as a | ramme % of Ra | dFeedp dial Dep | er Toot th of Cu | h (fz) t (ae) | Insert | ||||
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||
| HF | 1,01 1,57 – | 0,67 0,97 | 1,41 | 0,48 | 0,69 | 0,97 | 0,42 | 0,59 | 0,83 | 0,38 | 0,54 0,75 | HF |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
| Insert Geometry | 5% | 10% | Prog as a | rammed Feed per Tooth % of Radial Depth of Cut 20% | (fz) (ae) | 30% | 40–100% | Insert Geometry | |||
| HF | 0,91 | 1,53 | 2,81 | 0,61 | 0,96 | 1,43 | 0,45 0,69 0,99 | 0,39 | 0,59 0,85 | 0,35 0,54 0,77 | HF |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
Geometry 5% 10% 20% 30% 40–100% Geometry
| Insert Geometry | 5% | 10% | Prog as a | rammed Feed per Tooth % of Radial Depth of Cut 20% | (fz) (ae) | 30% | 40–100% | Insert Geometry | ||
| HF | 0,94 | 1,58 2,82 | 0,64 | 1,00 | 1,49 | 0,46 0,71 1,03 | 0,40 | 0,61 0,88 | 0,37 0,56 0,80 | HF |
