- Rough, semi-finishing, and finishing with one system.
- Through tool coolant.
- Secure and rigid insert clamping.

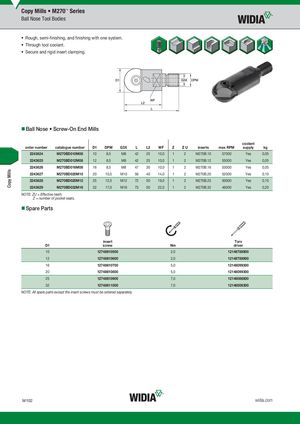

- Ball Nose Screw-On End Mills
| order number | catalogue number | D1 | DPM | G3X | L | L2 | WF | Z | Z U | inserts | max RPM | coolant supply | kg |
| 2243624 | M270BD010M08 | 10 | 8,5 | M8 | 42 | 25 | 10,0 | 1 | 2 | M270B.10 | 57000 | Yes | 0,05 |
| 2243625 | M270BD012M08 | 12 | 8,5 | M8 | 42 | 25 | 10,0 | 1 | 2 | M270B.12 | 55000 | Yes | 0,05 |
| 2243626 | M270BD016M08 | 16 | 8,5 | M8 | 47 | 30 | 10,0 | 1 | 2 | M270B.16 | 53000 | Yes | 0,05 |
| 2243627 | M270BD020M10 | 20 | 10,5 | M10 | 59 | 40 | 14,0 | 1 | 2 | M270B.20 | 52000 | Yes | 0,10 |
| 2243628 | M270BD025M12 | 25 | 12,5 | M12 | 72 | 50 | 19,0 | 1 | 2 | M270B.25 | 50000 | Yes | 0,10 |
| 2243629 | M270BD032M16 | 32 | 17,0 | M16 | 73 | 50 | 22,0 | 1 | 2 | M270B.32 | 46000 | Yes | 0,20 |
NOTE: ZU = Effective teeth. Z = number of pocket seats.
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 10 | 12748610500 | 2,0 | 12148788900 |
| 12 | 12748610600 | 2,0 | 12148788900 |
| 16 | 12748610700 | 5,0 | 12148099300 |
| 20 | 12748610800 | 5,0 | 12148099300 |
| 25 | 12748610900 | 7,0 | 12148086800 |
| 32 | 12748611000 | 7,0 | 12146006300 |
