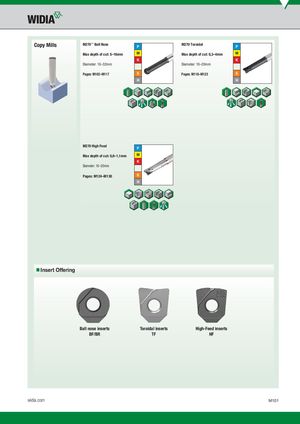

| Copy Mills M270™ Ball Nose | M270 Toroidal | ||
| P | P | ||
| Max depth of cut: 5–16mm | M | Max depth of cut: 0,3–4mm | M |
| K | K | ||
| Diameter: 10–32mm | Diameter: 10–20mm | ||
| Pages: M102–M117 | S | Pages: M118–M123 | S |
H H
M270 High Feed P Max depth of cut: 0,6–1,1mm M K Diameter: 10–20mm Pages: M124–M130 S H
Insert Offering
Ball nose inserts Toroidal inserts High-Feed inserts
BF/BR TF HF
