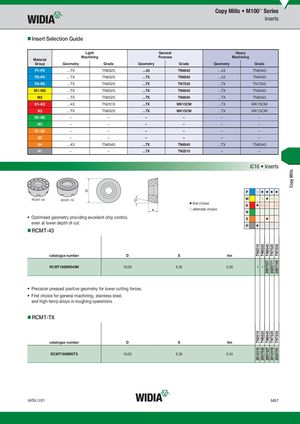

Общий каталог Widia 2017 - страница 1001
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | ...TX | TN6525 | ...43 | TN6540 | ...43 | TN6540 |
| P3–P4 | ...TX | TN6525 | ...TX | TN6540 | ...43 | TN6540 |
| P5–P6 | ...TX | TN6525 | ...TX | TN7535 | ...TX | TN7535 |
| M1–M2 | ...TX | TN6525 | ...TX | TN6540 | ...TX | TN6540 |
| M3 | ...TX | TN6525 | ...TX | TN6540 | ...TX | TN6540 |
| K1–K2 | ...43 | TN2510 | ...TX | WK15CM | ...TX | WK15CM |
| K3 | ...TX | TN6525 | ...TX | WK15CM | ...TX | WK15CM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | ...43 | TN6540 | ...TX | TN6540 | ...TX | TN6540 |
| H1 | – | – | ...TX | TN2510 | – | – |
iC16 Inserts
RCMT-43 RCMT-TX
- Optimised geometry providing excellent chip control, even at lower depth of cut.
- RCMT-43
fi rst choice alternate choice
P M K N S H
| catalogue number | D | S | hm |
| RCMT1606M043M | 16,00 | 6,35 | 0,20 |
- Precision pressed positive geometry for lower cutting forces.
- First choice for general machining, stainless steel, and high-temp alloys in roughing operations.
- RCMT-TX
| catalogue number | D | S | hm |
| RCMT1606M0TX | 16,00 | 6,35 | 0,24 |
