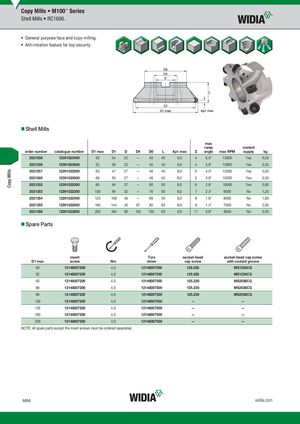

Shell Mills RC1606..
- General purpose face and copy milling.
- Anti-rotation feature for top security.
- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D4 | D6 | L | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 2021358 | 12391023400 | 50 | 34 | 22 | — | 40 | 40 | 8,0 | 4 | 6.0° | 13000 | Yes | 0,20 |
| 2021359 | 12391023600 | 52 | 36 | 22 | — | 40 | 40 | 8,0 | 4 | 5.8° | 13000 | Yes | 0,30 |
| 2021357 | 12391023200 | 63 | 47 | 27 | — | 48 | 40 | 8,0 | 5 | 4.0° | 12000 | Yes | 0,20 |
| 2021360 | 12391023800 | 66 | 50 | 27 | — | 48 | 40 | 8,0 | 5 | 3.8° | 12000 | Yes | 0,30 |
| 2021352 | 12391022000 | 80 | 64 | 27 | — | 60 | 50 | 8,0 | 6 | 2.8° | 10000 | Yes | 0,90 |
| 2021353 | 12391022200 | 100 | 84 | 32 | — | 78 | 50 | 8,0 | 7 | 2.3° | 9000 | No | 1,20 |
| 2021354 | 12391022400 | 125 | 109 | 40 | — | 89 | 50 | 8,0 | 8 | 1.8° | 8000 | No | 1,80 |
| 2021355 | 12391022600 | 160 | 144 | 40 | 67 | 90 | 63 | 8,0 | 9 | 1.3° | 7000 | No | 2,90 |
| 2021356 | 12391022800 | 200 | 184 | 60 | 102 | 130 | 63 | 8,0 | 11 | 0.8° | 6000 | No | 0,30 |
- Spare Parts
| insert | Torx | socket-head | socket-head cap screw | ||
| D1 max | screw | Nm | driver | cap screw | with coolant groove |
| D1 max | insert screw | Nm | Torx driver | socket-head cap screw | socket-head cap screw with coolantgroove |
| 50 | 12148007200 | 4,0 | 12148007500 | 125.025 | MS1234CG |
| 52 | 12148007200 | 4,0 | 12148007500 | 125.025 | MS1234CG |
| 63 | 12148007200 | 4,0 | 12148007500 | 125.230 | MS2038CG |
| 66 | 12148007200 | 4,0 | 12148007500 | 125.230 | MS2038CG |
| 80 | 12148007200 | 4,0 | 12148007500 | 125.230 | MS2038CG |
| 100 | 12148007200 | 4,0 | 12148007500 | — | — |
| 125 | 12148007200 | 4,0 | 12148007500 | — | — |
| 160 | 12148007200 | 4,0 | 12148007500 | — | — |
| 200 | 12148007200 | 4,0 | 12148007500 | — | — |
