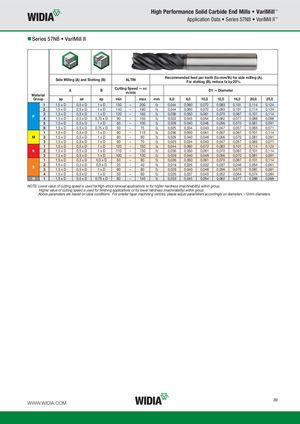

Application Data • Series 57N8 • VariMill II™

„ Series 57N8 • VariMill II

Side Milling (A) and Slotting (B)ALTINRecommended fee For sld per toot otting (B),h (fz=mm/t reduce fzh) for side by 20%.milling (A).
MtilABCutting Spee m/mid — vc nD1— Diameter
aera Groupapaeapminmaxmm6,08,010,012,016,020,025,0
11,5 x D0,5 x D1 x D150–200fz0,0440,0600,0720,0830,1010,1140,124
21,5 x D0,5 x D1 x D140–190fz0,0440,0600,0720,0830,1010,1140,124
P 31,5 x D0,5 x D1 x D120–160fz0,0360,0500,0610,0700,0870,1010,114
41,5 x D0,5 x D0,75 x D90–150fz0,0330,0450,0540,0620,0770,0880,098
51,5 x D0,5 x D1 x D60–100fz0,0290,0400,0480,0560,0700,0810,091
61,5 x D0,5 x D0,75 x D50–75fz0,0250,0340,0400,0470,0570,0650,071
11,5 x D0,5 x D1 x D90–115fz0,0360,0500,0610,0070,0870,1010,114
M 21,5 x D0,5 x D1 x D60–80fz0,0290,0400,0480,0560,0700,0810,091
31,5 x D0,5 x D1 x D60–70fz0,0250,0340,0400,0470,0570,0650,071
11,5 x D0,5 x D1 x D120–150fz0,0440,0600,0720,0830,1010,1140,124
K 21,5 x D0,5 x D1 x D110–130fz0,0360,0500,0610,0700,0870,1010,114
31,5 x D0,5 x D1 x D100–130fz0,0290,0400,0480,0560,0700,0810,091
11,5 x D0,3 x D0,3 x D50–90fz0,0360,0500,0610,0700,0870,1010,114
21,5 x D0,3 x D0,3 x D25–40fz0,0190,0260,0320,0370,0460,0540,061
S 31,5 x D0,5 x D1 x D60–80fz0,0290,0400,0480,0560,0700,0810,091
41,5 x D0,5 x D1 x D50–60fz0,0260,0370,0450,0520,0640,0740,084
H 11,5 x D0,5 x D0,75 x D80–140fz0,0330,0450,0540,0620,0770,0880,098

NOTE: Lower value of cutting speed is used for high-stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm diameters.
