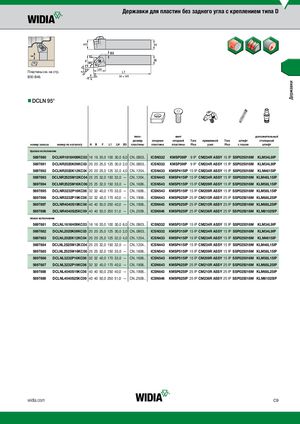

Каталог Widia токарный инструмент 2017 - страница 239
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
Пластины см. на стр. B30-B46.
nnDCLN 95°
типо- винт дополнительный
| стопорный штифт Torx прижимной Torx опорной размер опорная | ||
| номер заказа | штифт с пазом Plus узел Plus пластины пластины LH B3 L1 F H B номер по каталогу пластина | |
| правое исполнение | ||
| 5697890 | DCLNR1616H09KC03 16 16 20,0 100 30,0 6,0 CN..0903.. | CM234R ASSY 15 IP SSP025016M KLM34L9IP 9 IP KMSP39IP ICSN332 |
| 5697891 | DCLNR2020K09KC03 20 20 25,0 125 30,0 2,0 CN..0903.. | CM234R ASSY 15 IP SSP025016M KLM34L9IP 9 IP KMSP39IP ICSN332 |
| 5697892 | DCLNR2020K12KC04 20 20 25,0 125 32,0 4,0 CN..1204.. | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP |
| 5697893 | DCLNR2525M12KC04 25 25 32,0 150 32,0 — CN..1204.. | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5697894 | DCLNR2525M16KC06 25 25 32,0 150 33,0 — CN..1606.. | ICSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
| 5697895 | DCLNR3232P16KC06 32 32 40,0 170 33,0 — CN..1606.. | ICSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
| 5697896 | DCLNR3232P19KC06 32 32 40,0 170 40,0 — CN..1906.. | ICSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
| 5697897 | DCLNR4040S19KC06 40 40 50,0 250 40,0 — CN..1906.. | ICSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
| 5697898 | DCLNR4040S25KC09 40 40 50,0 250 51,0 — CN..2509.. | ICSN846 KMSP825IP 25 IP CM236R ASSY 25 IP SSP025018M KLM81025IP |
| левое исполнение | ||
| 5697881 | DCLNL1616H09KC03 16 16 20,0 100 30,0 6,0 CN..0903.. | ICSN332 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP |
| 5697882 | DCLNL2020K09KC03 20 20 25,0 125 30,0 2,0 CN..0903.. | ICSN332 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP |
| 5697883 | DCLNL2020K12KC04 20 20 25,0 125 32,0 4,0 CN..1204.. | ICSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP |
| 5697884 | DCLNL2525M12KC04 25 25 32,0 150 32,0 — CN..1204.. | ICSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP |
| 5697885 | DCLNL2525M16KC06 25 25 32,0 150 33,0 — CN..1606.. | ICSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
| 5697886 | DCLNL3232P16KC06 32 32 40,0 170 33,0 — CN..1606.. | ICSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP |
| 5697887 | DCLNL3232P19KC06 32 32 40,0 170 40,0 — CN..1906.. | ICSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
| 5697888 | DCLNL4040S19KC06 40 40 50,0 250 40,0 — CN..1906.. | ICSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP |
| 5697889 | DCLNL4040S25KC09 40 40 50,0 250 51,0 — CN..2509.. | ICSN846 KMSP825IP 25 IP CM236R ASSY 25 IP SSP025018M KLM81025IP |
