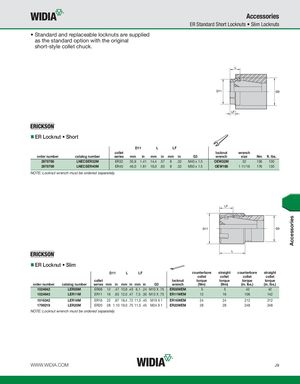

ER Standard Short Locknuts Slim Locknuts
- Standard and replaceable locknuts are supplied as the standard option with the original short-style collet chuck.
ER Locknut Short
D11 L LF
collet locknut wrench
| order number | catalog number | series | mm | in | mm | in | mm | in | G3 | wrench | size | Nm | ft. lbs. | ||
| 2978768 | LNECSER32M | ER32 | 35,9 | 1.41 | 14,4 .57 | 8 | .32 | M40 x 1.5 | OEW32M | 32 | 136 | 100 | |||
| 2978769 | LNECSER40M | ER40 | 46,0 | 1.81 | 16,0 .63 | 8 | .32 | M50 x 1.5 | OEW168 | 1 11/16 | 176 | 130 |
NOTE: Locknut wrench must be ordered separately.
ER Locknut Slim
| D11 | LF L | counterbore | straight | counterbore | straight | |||||
| collet | collet | collet | collet | |||||||
| collet | locknut | torque | torque | torque | torque | |||||
| order number | catalog number | series mm in mm in mm in | G3 | wrench | (Nm) | (Nm) | (in. lbs.) | (in. lbs.) | ||
| 1024642 | LER08M | ER08 | 12 | .47 10,8 .43 6,1 .24 M10 X .75 | ER08WEM | 5 | 5 | 42 | 42 | |
| 1024643 | LER11M | ER11 | 16 | .63 12,0 .47 7,5 .30 M13 X .75 | ER11WEM | 12 | 16 | 106 | 142 | |
| 1016342 | LER16M | ER16 | 22 | .87 18,4 .72 11,5 .45 | M19 X 1 | ER16WEM | 24 | 24 | 212 | 212 |
| 1799219 | LER20M | ER20 | 28 1.10 19,0 .75 11,5 .45 | M24 X 1 | ER20WEM | 28 | 28 | 248 | 248 |
NOTE: Locknut wrench must be ordered separately.
