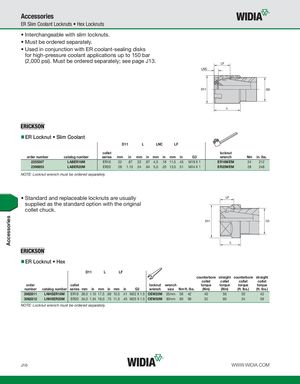

ER Slim Coolant Locknuts Hex Locknuts
- Interchangeable with slim locknuts.
- Must be ordered separately.
- Used in conjunction with ER coolant-sealing disks for high-pressure coolant applications up to 150 bar (2,000 psi). Must be ordered separately; see page J13.
ER Locknut Slim Coolant
| D11 | L | LNC | LF | ||
| collet | locknut |
| order number | catalog number | series | mm | in | mm | in | mm | in | mm | in | G3 | wrench | Nm | in. lbs. | |
| 2255307 | LABER16M | ER16 | 22 | .87 | 22 | .87 | 4,5 | .18 11,5 .45 | M19 X 1 | ER16WEM | 24 | 212 | |||
| 2398953 | LABER20M | ER20 | 28 | 1.10 | 24 | .94 | 5,0 | .20 13,0 .51 | M24 X 1 | ER20WEM | 28 | 248 |
NOTE: Locknut wrench must be ordered separately.
- Standard and replaceable locknuts are usually supplied as the standard option with the original collet chuck.
G3
ER Locknut Hex
| D11 | L | LF | |
| counterbore straight counterbore straight |
| collet | collet | collet | collet | ||||||||||||
| order | collet | locknut | wrench | torque | torque | torque | torque | ||||||||
| number | catalog number | series mm | in | mm in mm | in | G3 | wrench | size | Nm ft. lbs. | (Nm) | (Nm) | (ft. lbs.) | (ft. lbs.) | ||
| 3062811 | LNHSER16M | ER16 28,0 1.10 17,5 .69 10,5 .41 M22 X 1.5 | OEW25M | 25mm | 56 | 42 | 40 | 56 | 30 | 42 | |||||
| 3062812 | LNHSER20M | ER20 34,0 1.34 19,0 .75 11,5 .45 M25 X 1.5 | OEW30M | 30mm | 80 | 59 | 32 | 80 | 24 | 59 |
NOTE: Locknut wrench must be ordered separately.
