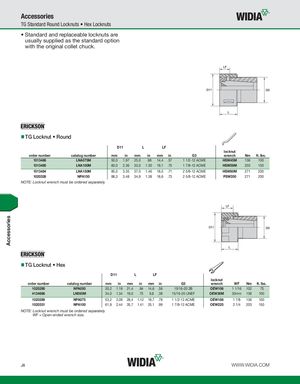

TG Standard Round Locknuts Hex Locknuts
- Standard and replaceable locknuts are usually supplied as the standard option with the original collet chuck.
TG Locknut Round
| order number | catalog number | mm D1 | in 1 | mm L | in | mm LF | in | G3 | locknut wrench | Nm | ft. lbs. |
| 1013486 1013485 | LNA075M LNA100M | 50,0 60,0 | 1.97 2.36 | 25,0 33,0 | .98 1.30 | 14,4 19,1 | .57 .75 | 1 1/2-12 ACME 1 7/8-12 ACME | HSW45M HSW58M | 136 203 | 100 150 |
| 1013484 | LNA150M | 85,0 | 3.35 | 37,0 | 1.46 | 18,0 | .71 | 2 5/8-12 ACME | HSW80M | 271 | 200 |
| 1020326 | NPA150 | 88,3 | 3.48 | 34,9 | 1.38 | 18,6 | .73 | 2 5/8-12 ACME | PSW350 | 271 | 200 |
NOTE: Locknut wrench must be ordered separately.
TG Locknut Hex
| D11 | L | LF | |
| locknut |
| order number | catalog number | mm | in | mm | in | mm | in | G3 | wrench | WF | Nm | ft. lbs. | |||
| 1020290 | NPA050 | 30,2 | 1.19 | 21,4 | .84 | 14,6 | .58 | 15/16-20 2B | OEW106 | 1 1/16 | 102 | 75 | |||
| 4134686 | LN050M | 34,0 | 1.34 | 19,0 | .75 | 9,8 | .38 | 15/16-20 UNEF | OEW30M | 30mm | 136 | 100 | |||
| 1020289 | NPA075 | 53,2 | 2.09 | 28,4 | 1.12 | 19,7 | .78 | 1 1/2-12 ACME | OEW188 | 1 7/8 | 136 | 100 | |||
| 1020331 | NPA100 | 61,9 | 2.44 | 35,7 | 1.41 | 25,1 | .99 | 1 7/8-12 ACME | OEW225 | 2 1/4 | 203 | 150 |
NOTE: Locknut wrench must be ordered separately. WF = Open-ended wrench size.
