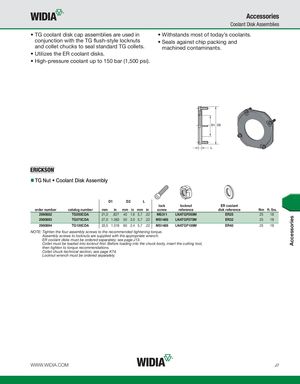

Accessories Coolant Disk Assemblies • TG coolant disk cap assemblies are used in • Withstands most of today’s coolants. conjunction with the TG flush-style locknuts • Seals against chip packing and and collet chucks to seal standard TG collets. machined contaminants. • Utilizes the ER coolant disks. • High-pressure coolant up to 150 bar (1,500 psi). TG Nut • Coolant Disk Assembly D1 D2 L lock locknut ER coolant order number catalog number mm in mm in mm in screw reference disk reference Nm ft. lbs. 2980882 TG050CDA 21,0 .827 40 1.6 5,7 .22 MS311 LNATGF050M ER25 25 18 2980893 TG075CDA 27,0 1.063 50 2.0 5,7 .22 MS1488 LNATGF075M ER32 25 18 2980894 TG100CDA 33,5 1.319 60 2.4 5,7 .22 MS1488 LNATGF100M ER40 25 18 NOTE: Tighten the four assembly screws to the recommended tightening torque. Assembly screws to locknuts are supplied with the appropriate wrench. ER coolant disks must be ordered separately; see page J13. Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to torque recommendations. Collet chuck technical section, see page K74. Locknut wrench must be ordered separately. WWW.WIDIA.COM J7 Accessories
