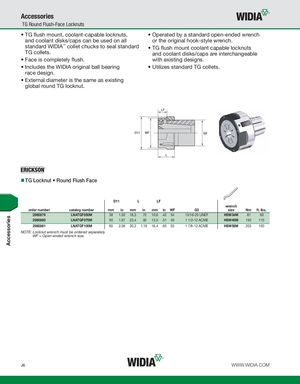

TG Round Flush-Face Locknuts
- TG flush mount, coolant-capable locknuts,
- Operated by a standard open-ended wrench
and coolant disks/caps can be used on all or the original hook-style wrench.
standard WIDIA™ collet chucks to seal standard TG flush mount coolant capable locknuts
TG collets. and coolant disks/caps are interchangeable
- Face is completely flush. with existing designs.
- Includes the WIDIA original ball bearing
- Utilizes standard TG collets.
race design.
- External diameter is the same as existing global round TG locknut.
TG Locknut Round Flush Face
| order number | catalog number | D1 mm | 1 in | L mm | in | LF mm | in WF | G3 | wrench size | Nm | ft. lbs. |
| 2980879 | LNATGF050M | 38 | 1.50 | 18,3 | .72 | 10,6 | .42 34 | 15/16-20 UNEF | HSW34M | 81 | 60 |
| 2980880 | LNATGF075M | 50 | 1.97 | 23,4 | .92 | 13,0 | .51 46 | 1 1/2-12 ACME | HSW45M | 150 | 110 |
| 2980881 | LNATGF100M | 60 | 2.36 | 30,2 | 1.19 | 16,4 | .65 55 | 1 7/8-12 ACME | HSW58M | 203 | 150 |
NOTE: Locknut wrench must be ordered separately. WF = Open-ended wrench size.
