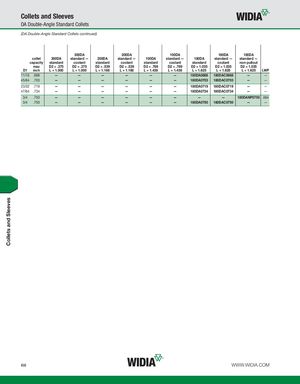

Collets and Sleeves DA Double-Angle Standard Collets (DA Double-Angle Standard Collets continued) 300DA 200DA 100DA 180DA 180DA collet 300DA standard — 200DA standard — 100DA standard — 180DA standard — standard — capacity standard coolant standard coolant standard coolant standard coolant non-pullout max D2 = .375 D2 = .375 D2 = .539 D2 = .539 D2 = .769 D2 = .769 D2 = 1.035 D2 = 1.035 D2 = 1.035 D1 inch L = 1.000 L = 1.000 L = 1.188 L = 1.188 L = 1.438 L = 1.438 L = 1.625 L = 1.625 L = 1.625 LWP 11/16 .688 — — — — — — 180DA0688 180DAC0688 — — 45/64 .703 — — — — — — 180DA0703 180DAC0703 — — 23/32 .719 — — — — — — 180DA0719 180DAC0719 — — 47/64 .734 — — — — — — 180DA0734 180DAC0734 — — 3/4 .750 — — — — — — — — 180DANP0750 .664 3/4 .750 — — — — — — 180DA0750 180DAC0750 — — I68 WWW.WIDIA.COM Collets and Sleeves
