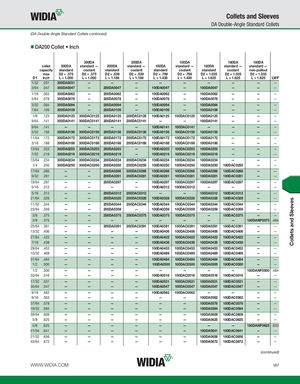

(DA Double-Angle Standard Collets continued)
DA200 Collet • Inch
| collet | 300DA | 300DA standard — | 200DA | 200DA standard — | 100DA | 100DA standard — | 180DA | 180DA standard — | 180DA standard — | ||
| D1 c | apacity max inch | standard D2 = .375 L = 1.000 | coolant D2 = .375 L = 1.000 | standard D2 = .539 L = 1.188 | coolant D2 = .539 L = 1.188 | standard D2 = .769 L = 1.438 | coolant D2 = .769 L = 1.438 | standard D2 = 1.035 L = 1.625 | coolant D2 = 1.035 L = 1.625 | non-pullout D2 = 1.035 L = 1.625 | LWP |
| 1/32 | .031 | 300DA0031 | — | — | — | — | — | — | — | — | — |
| 3/64 | .047 | 300DA0047 | — | 200DA0047 | — | 100DA0047 | — | 180DA0047 | — | — | — |
| 1/16 | .063 | 300DA0062 | — | 200DA0062 | — | 100DA0062 | — | 180DA0062 | — | — | — |
| 5/64 | .078 | 300DA0078 | — | 200DA0078 | — | 100DA0078 | — | 180DA0078 | — | — | — |
| 3/32 | .094 | 300DA0094 | — | 200DA0094 | — | 100DA0094 | — | 180DA0094 | — | — | — |
| 7/64 | .109 | 300DA0109 | — | 200DA0109 | — | 100DA0109 | — | 180DA0109 | — | — | — |
| 1/8 | .125 | 300DA0125 | 300DAC0125 | 200DA0125 | 200DAC0125 | 100DA0125 | 100DAC0125 | 180DA0125 | — | — | — |
| 9/64 | .141 | 300DA0141 | 300DAC0141 | 200DA0141 | 200DAC0141 | — | — | 180DA0141 | — | — | — |
| 9/64 | .141 | — | — | — | — | 100DA0141 | 100DAC0141 | — | — | — | — |
| 5/32 | .156 | 300DA0156 | 300DAC0156 | 200DA0156 | 200DAC0156 | 100DA0156 | 100DAC0156 | 180DA0156 | — | — | — |
| 11/64 | .172 | 300DA0172 | 300DAC0172 | 200DA0172 | 200DAC0172 | 100DA0172 | 100DAC0172 | 180DA0172 | — | — | — |
| 3/16 | .188 | 300DA0188 | 300DAC0188 | 200DA0188 | 200DAC0188 | 100DA0188 | 100DAC0188 | 180DA0188 | — | — | — |
| 13/64 | .203 | 300DA0203 | 300DAC0203 | 200DA0203 | — | 100DA0203 | 100DAC0203 | 180DA0203 | — | — | — |
| 7/32 | .219 | 300DA0219 | 300DAC0219 | 200DA0219 | — | 100DA0219 | 100DAC0219 | 180DA0219 | — | — | — |
| 15/64 | .234 | 300DA0234 | 300DAC0234 | 200DA0234 | 200DAC0234 | 100DA0234 | 100DAC0234 | 180DA0234 | — | — | — |
| 1/4 | .250 | 300DA0250 | 300DAC0250 | 200DA0250 | 200DAC0250 | 100DA0250 | 100DAC0250 | 180DA0250 | 180DAC0250 | — | — |
| 17/64 | .266 | — | — | 200DA0266 | 200DAC0266 | 100DA0266 | 100DAC0266 | 180DA0266 | 180DAC0266 | — | — |
| 9/32 | .281 | — | — | 200DA0281 | 200DAC0281 | 100DA0281 | 100DAC0281 | 180DA0281 | 180DAC0281 | — | — |
| 19/64 | .297 | — | — | 200DA0297 | — | 100DA0297 | 100DAC0297 | 180DA0297 | 180DAC0297 | — | — |
| 5/16 | .312 | — | — | — | — | 100DA0312 | 100DAC0312 | — | — | — | — |
| 5/16 | .313 | — | — | 200DA0312 | 200DAC0312 | — | — | 180DA0312 | 180DAC0312 | — | — |
| 21/64 | .328 | — | — | 200DA0328 | 200DAC0328 | 100DA0328 | 100DAC0328 | 180DA0328 | 180DAC0328 | — | — |
| 11/32 | .344 | — | — | 200DA0344 | 200DAC0344 | 100DA0344 | 100DAC0344 | 180DA0344 | 180DAC0344 | — | — |
| 23/64 | .359 | — | — | 200DA0359 | — | 100DA0359 | 100DAC0359 | 180DA0359 | 180DAC0359 | — | — |
| 3/8 | .375 | — | — | 200DA0375 | 200DAC0375 | 100DA0375 | 100DAC0375 | — | 180DAC0375 | — | — |
| 3/8 | .375 | — | — | — | — | — | — | — | — | 180DANP0375 | .484 |
| 25/64 | .391 | — | — | 200DA0391 | 200DAC0391 | 100DA0391 | 100DAC0391 | 180DA0391 | 180DAC0391 | — | — |
| 13/32 | .406 | — | — | — | — | 100DA0406 | 100DAC0406 | 180DA0406 | 180DAC0406 | — | — |
| 27/64 | .422 | — | — | — | — | 100DA0422 | 100DAC0422 | 180DA0422 | 180DAC0422 | — | — |
| 7/16 | .438 | — | — | — | — | 100DA0438 | 100DAC0438 | 180DA0438 | 180DAC0438 | — | — |
| 29/64 | .453 | — | — | — | — | 100DA0453 | 100DAC0453 | 180DA0453 | 180DAC0453 | — | — |
| 15/32 | .469 | — | — | — | — | 100DA0469 | 100DAC0469 | 180DA0469 | 180DAC0469 | — | — |
| 31/64 | .484 | — | — | — | — | 100DA0484 | 100DAC0484 | 180DA0484 | 180DAC0484 | — | — |
| 1/2 | .500 | — | — | — | — | 100DA0500 | 100DAC0500 | 180DA0500 | 180DAC0500 | — | — |
| 1/2 | .500 | — | — | — | — | — | — | — | — | 180DANP0500 | .484 |
| 33/64 | .516 | — | — | — | — | 100DA0516 | 100DAC0516 | 180DA0516 | 180DAC0516 | — | — |
| 17/32 | .531 | — | — | — | — | 100DA0531 | 100DAC0531 | 180DA0531 | 180DAC0531 | — | — |
| 35/64 | .547 | — | — | — | — | 100DA0547 | 100DAC0547 | 180DA0547 | 180DAC0547 | — | — |
| 9/16 | .562 | — | — | — | — | 100DA0562 | 100DAC0562 | — | — | — | — |
| 9/16 | .563 | — | — | — | — | — | — | 180DA0562 | 180DAC0562 | — | — |
| 37/64 | .578 | — | — | — | — | — | — | 180DA0578 | 180DAC0578 | — | — |
| 19/32 | .594 | — | — | — | — | — | — | 180DA0594 | 180DAC0594 | — | — |
| 39/64 | .609 | — | — | — | — | — | — | 180DA0609 | 180DAC0609 | — | — |
| 5/8 | .625 | — | — | — | — | — | — | 180DA0625 | 180DAC0625 | — | — |
| 5/8 | .625 | — | — | — | — | — | — | — | — | 180DANP0625 | .633 |
| 41/64 | .641 | — | — | — | — | — | — | 180DA0641 | 180DAC0641 | — | — |
| 21/32 | 656 | — | — | — | — | — | — | 180DA0656 | 180DAC0656 | — | — |
| 43/64 | . .672 | — | — | — | — | — | — | 180DA0672 | 180DAC0672 | — | — |
