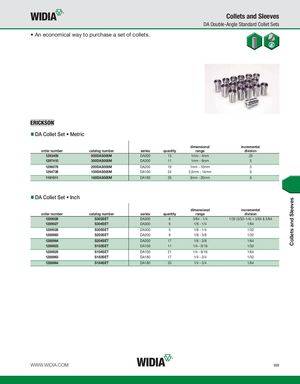

Collets and Sleeves DA Double-Angle Standard Collet Sets • An economical way to purchase a set of collets. DA Collet Set • Metric dimensional incremental order number catalog number series quantity range division 1293409 000DAS000M DA000 13 1mm - 4mm .25 1297410 300DAS000M DA300 11 1mm - 6mm .5 1296078 200DAS000M DA200 19 1mm - 10mm .5 1294736 100DAS000M DA100 24 2,5mm - 14mm .5 1191011 180DAS000M DA180 35 3mm - 20mm .5 DA Collet Set • Inch dimensional incremental order number catalog number series quantity range division 1289026 S303SET DA300 8 3/64 - 1/4 1/32 (3/32–1/4) + 3/64 & 5/64 1289027 S304SET DA300 9 1/8 - 1/4 1/64 1289028 S305SET DA300 5 1/8 - 1/4 1/32 1288983 S203SET DA200 9 1/8 - 3/8 1/32 1288984 S204SET DA200 17 1/8 - 3/8 1/64 1288923 S103SET DA100 11 1/4 - 9/16 1/32 1288925 S104SET DA100 21 1/4 - 9/16 1/64 1288963 S183SET DA180 17 1/4 - 3/4 1/32 1288964 S184SET DA180 33 1/4 - 3/4 1/64 WWW.WIDIA.COM I69 Collets and Sleeves
