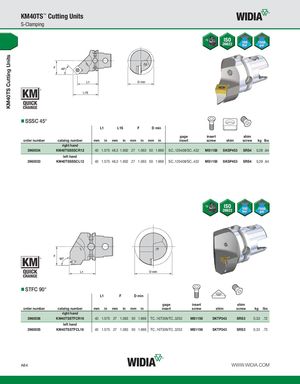

KM40TS Cutting Units KM40TS™ Cutting Units S-Clamping SSSC 45° L1 L1S F D min gage insert shim order number catalog number mm in mm in mm in mm in insert screw shim screw kg lbs right hand 3960034 KM40TSSSSCR12 40 1.575 48,3 1.902 27 1.063 50 1.969 SC..120408/SC..432 MS1158 SKSP453 SRS4 0,29 .64 left hand 3960033 KM40TSSSSCL12 40 1.575 48,3 1.902 27 1.063 50 1.969 SC..120408/SC..432 MS1158 SKSP453 SRS4 0,29 .64 STFC 90° L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 3960036 KM40TSSTFCR16 40 1.575 27 1.063 50 1.969 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .72 left hand 3960035 KM40TSSTFCL16 40 1.575 27 1.063 50 1.969 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .73 A84 WWW.WIDIA.COM
