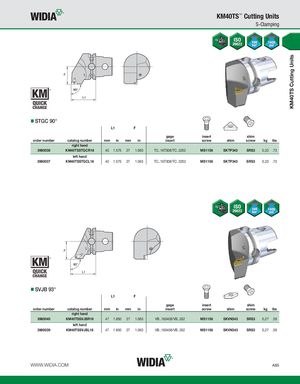

KM40TS Cutting Units KM40TS™ Cutting Units S-Clamping STGC 90° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 3960038 KM40TSSTGCR16 40 1.575 27 1.063 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .73 left hand 3960037 KM40TSSTGCL16 40 1.575 27 1.063 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .73 SVJB 93° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 3960040 KM40TSSVJBR16 47 1.850 27 1.063 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,27 .59 left hand 3960039 KM40TSSVJBL16 47 1.850 27 1.063 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,27 .59 WWW.WIDIA.COM A85
