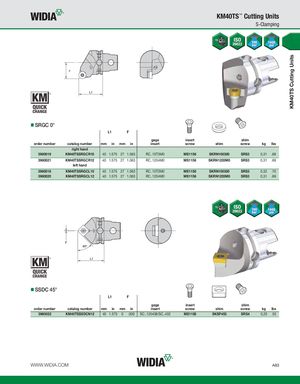

KM40TS Cutting Units KM40TS™ Cutting Units S-Clamping F SRGC 0° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 3960019 KM40TSSRGCR10 40 1.575 27 1.063 RC..10T3M0 MS1156 SKRN100300 SRS3 0,31 .69 3960021 KM40TSSRGCR12 40 1.575 27 1.063 RC..1204M0 MS1156 SKRN1203M0 SRS3 0,31 .69 left hand 3960018 KM40TSSRGCL10 40 1.575 27 1.063 RC..10T3M0 MS1156 SKRN100300 SRS3 0,32 .70 3960020 KM40TSSRGCL12 40 1.575 27 1.063 RC..1204M0 MS1156 SKRN1203M0 SRS3 0,31 .69 SSDC 45° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs 3960022 KM40TSSSDCN12 40 1.575 0 .000 SC..120408/SC..432 MS1158 SKSP453 SRS4 0,25 .55 WWW.WIDIA.COM A83
