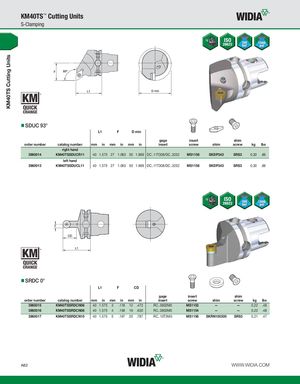

KM40TS Cutting Units KM40TS™ Cutting Units S-Clamping SDUC 93° L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 3960014 KM40TSSDUCR11 40 1.575 27 1.063 50 1.969 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 0,30 .66 left hand 3960013 KM40TSSDUCL11 40 1.575 27 1.063 50 1.969 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 0,30 .66 SRDC 0° L1 F CD gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs 3960015 KM40TSSRDCN06 40 1.575 3 .118 12 .472 RC..0602M0 MS1153 — — 0,22 .48 3960016 KM40TSSRDCN08 40 1.575 4 .158 16 .630 RC..0803M0 MS1154 — — 0,22 .48 3960017 KM40TSSRDCN10 40 1.575 5 .197 20 .787 RC..10T3M0 MS1156 SKRN100300 SRS3 0,21 .47 A82 WWW.WIDIA.COM
