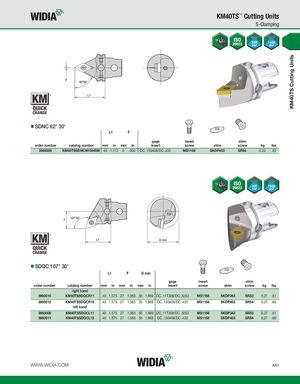

KM40TS Cutting Units KM40TS™ Cutting Units S-Clamping SDNC 62° 30' L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs 3960008 KM40TSSDNCN15045M 45 1.772 0 .000 DC..150408/DC..432 MS1158 SKDP453 SRS4 0,23 .50 SDQC 107° 30' L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 3960010 KM40TSSDQCR11 40 1.575 27 1.063 50 1.969 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 0,27 .61 3960012 KM40TSSDQCR15 40 1.575 27 1.063 50 1.969 DC..150408/DC..432 MS1158 SKDP453 SRS4 0,27 .60 left hand 3960009 KM40TSSDQCL11 40 1.575 27 1.063 50 1.969 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 0,27 .61 3960011 KM40TSSDQCL15 40 1.575 27 1.063 50 1.969 DC..150408/DC..432 MS1158 SKDP453 SRS4 0,27 .60 WWW.WIDIA.COM A81
