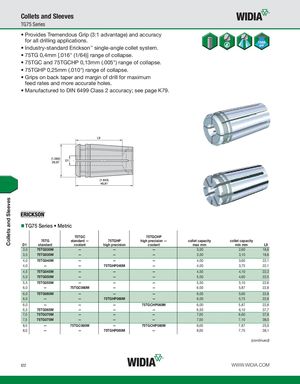

Collets and Sleeves TG75 Series • Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. • Industry-standard Erickson™ single-angle collet system. • 75TG 0,4mm [.016" (1/64)] range of collapse. • 75TGC and 75TGCHP 0,13mm (.005") range of collapse. • 75TGHP 0,25mm (.010") range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG75 Series • Metric 75TGC 75TGCHP 75TG standard — 75TGHP high precision — collet capacity collet capacity D1 standard coolant high precision coolant max mm min mm L9 3,0 75TG030M — — — 3,00 2,60 18,6 3,5 75TG035M — — — 3,50 3,10 18,8 4,0 75TG040M — — — 4,00 3,60 22,1 4,0 — — 75TGHP040M — 4,00 3,75 22,1 4,5 75TG045M — — — 4,50 4,10 22,3 5,0 75TG050M — — — 5,00 4,60 22,5 5,5 75TG055M — — — 5,50 5,10 22,6 6,0 — 75TGC060M — — 6,00 5,87 22,8 6,0 75TG060M — — — 6,00 5,60 22,8 6,0 — — 75TGHP060M — 6,00 5,75 22,8 6,0 — — — 75TGCHP060M 6,00 5,87 22,8 6,5 75TG065M — — — 6,50 6,10 37,7 7,0 75TG070M — — — 7,00 6,60 37,8 7,5 75TG075M — — — 7,50 7,10 38,0 8,0 — 75TGC080M — 75TGCHP080M 8,00 7,87 25,9 8,0 — — 75TGHP080M — 8,00 7,75 38,1 (continued) I22 WWW.WIDIA.COM Collets and Sleeves
