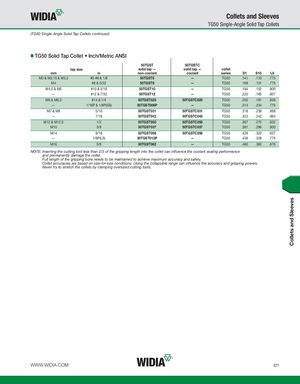

Collets and Sleeves TG50 Single-Angle Solid Tap Collets (TG50 Single-Angle Solid Tap Collets continued) TG50 Solid Tap Collet • Inch/Metric ANSI 50TGST 50TGSTC tap size solid tap — solid tap — collet mm in non-coolant coolant series D1 S10 L9 M3 & M3,15 & M3,5 #0-#6 & 1/8 50TGST6 — TG50 .141 .110 .775 M4 #8 & 5/32 50TGST8 — TG50 .168 .131 .775 M4,5 & M5 #10 & 3/16 50TGST10 — TG50 .194 .152 .900 — #12 & 7/32 50TGST12 — TG50 .220 .165 .807 M6 & M6,3 #14 & 1/4 50TGST025 50TGSTC025 TG50 .255 .191 .838 — 1/16P & 1/8P(SS) 50TGST006P — TG50 .313 .234 .775 M7 & M8 5/16 50TGST031 50TGSTC031 TG50 .318 .238 .868 — 7/16 50TGST043 50TGSTC043 TG50 .323 .242 .963 M12 & M12,5 1/2 50TGST050 50TGSTC050 TG50 .367 .275 .932 M10 3/8 50TGST037 50TGSTC037 TG50 .381 .286 .900 M14 9/16 50TGST056 50TGSTC056 TG50 .429 .322 .937 — 1/8P(LS) 50TGST012P — TG50 .438 .328 .775 M16 5/8 50TGST062 — TG50 .480 .360 .876 NOTE: Inserting the cutting tool less than 2/3 of the gripping length into the collet can influence the coolant sealing performance and permanently damage the collet. Full length of the gripping bore needs to be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. WWW.WIDIA.COM I21 Collets and Sleeves
