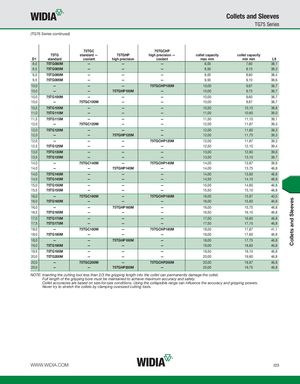

Каталог Widia инструментальная оснастка - страница 931

Предыдущая страница Следующая страница

Навигация

Collets and Sleeves TG75 Series (TG75 Series continued) 75TGC 75TGCHP 75TG standard — 75TGHP high precision — collet capacity collet capacity D1 standard coolant high precision coolant max mm min mm L9 8,0 75TG080M — — — 8,00 7,60 38,1 8,5 75TG085M — — — 8,50 8,10 38,3 9,0 75TG090M — — — 9,00 8,60 38,4 9,5 75TG095M — — — 9,50 9,10 38,6 10,0 — — — 75TGCHP100M 10,00 9,87 38,7 10,0 — — 75TGHP100M — 10,00 9,75 38,7 10,0 75TG100M — — — 10,00 9,60 38,7 10,0 — 75TGC100M — — 10,00 9,87 38,7 10,5 75TG105M — — — 10,50 10,10 38,8 11,0 75TG110M — — — 11,00 10,60 39,0 11,5 75TG115M — — — 11,50 11,10 39,1 12,0 — 75TGC120M — — 12,00 11,87 39,3 12,0 75TG120M — — — 12,00 11,60 39,3 12,0 — — 75TGHP120M — 12,00 11,75 39,3 12,0 — — — 75TGCHP120M 12,00 11,87 39,3 12,5 75TG125M — — — 12,50 12,10 39,4 13,0 75TG130M — — — 13,00 12,60 39,6 13,5 75TG135M — — — 13,50 13,10 39,7 14,0 — 75TGC140M — 75TGCHP140M 14,00 13,87 39,9 14,0 — — 75TGHP140M — 14,00 13,75 46,8 14,0 75TG140M — — — 14,00 13,60 46,8 14,5 75TG145M — — — 14,50 14,10 46,8 15,0 75TG150M — — — 15,00 14,60 46,8 15,5 75TG155M — — — 15,50 15,10 46,8 16,0 — 75TGC160M — 75TGCHP160M 16,00 15,87 40,5 16,0 75TG160M — — — 16,00 15,60 46,8 16,0 — — 75TGHP160M — 16,00 15,75 46,8 16,5 75TG165M — — — 16,50 16,10 46,8 17,0 75TG170M — — — 17,00 16,60 46,8 17,5 75TG175M — — — 17,50 17,10 46,8 18,0 — 75TGC180M — 75TGCHP180M 18,00 17,87 41,1 18,0 75TG180M — — — 18,00 17,60 46,8 18,0 — — 75TGHP180M — 18,00 17,75 46,8 19,0 75TG190M — — — 19,00 18,60 46,8 19,5 75TG195M — — — 19,50 19,10 46,8 20,0 75TG200M — — — 20,00 19,60 46,8 20,0 — 75TGC200M — 75TGCHP200M 20,00 19,87 46,8 20,0 — — 75TGHP200M — 20,00 19,75 46,8 NOTE: Inserting the cutting tool less than 2/3 the gripping length into the collet can permanently damage the collet. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. WWW.WIDIA.COM I23 Collets and Sleeves
