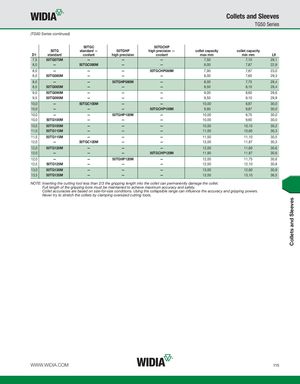

Collets and Sleeves TG50 Series (TG50 Series continued) 50TGC 50TGCHP 50TG standard — 50TGHP high precision — collet capacity collet capacity D1 standard coolant high precision coolant max mm min mm L9 7,5 50TG075M — — — 7,50 7,10 29,1 8,0 — 50TGC080M — — 8,00 7,87 22,9 8,0 — — — 50TGCHP080M 7,90 7,87 23,0 8,0 50TG080M — — — 8,00 7,60 29,3 8,0 — — 50TGHP080M — 8,00 7,75 29,4 8,5 50TG085M — — — 8,50 8,10 29,4 9,0 50TG090M — — — 9,00 8,60 29,6 9,5 50TG095M — — — 9,50 9,10 29,9 10,0 — 50TGC100M — — 10,00 9,87 30,0 10,0 — — — 50TGCHP100M 9,90 9,87 30,0 10,0 — — 50TGHP100M — 10,00 9,75 30,0 10,0 50TG100M — — — 10,00 9,60 30,0 10,5 50TG105M — — — 10,50 10,10 30,2 11,0 50TG110M — — — 11,00 10,60 30,3 11,5 50TG115M — — — 11,50 11,10 30,5 12,0 — 50TGC120M — — 12,00 11,87 30,3 12,0 50TG120M — — — 12,00 11,60 30,6 12,0 — — — 50TGCHP120M 11,90 11,87 30,6 12,0 — — 50TGHP120M — 12,00 11,75 30,6 12,5 50TG125M — — — 12,50 12,10 30,8 13,0 50TG130M — — — 13,00 12,60 30,9 13,5 50TG135M — — — 13,50 13,10 36,5 NOTE: Inserting the cutting tool less than 2/3 the gripping length into the collet can permanently damage the collet. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. WWW.WIDIA.COM I15 Collets and Sleeves
