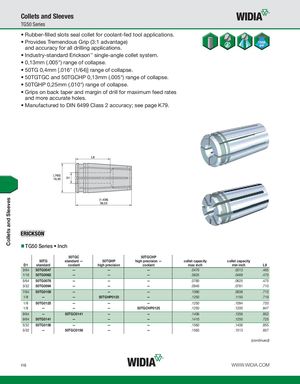

Collets and Sleeves TG50 Series • Rubber-filled slots seal collet for coolant-fed tool applications. • Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. • Industry-standard Erickson™ single-angle collet system. • 0,13mm (.005") range of collapse. • 50TG 0,4mm [.016" (1/64)] range of collapse. • 50TGTGC and 50TGCHP 0,13mm (.005") range of collapse. • 50TGHP 0,25mm (.010") range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG50 Series • Inch 50TGC 50TGCHP 50TG standard — 50TGHP high precision — collet capacity collet capacity D1 standard coolant high precision coolant max inch min inch L9 3/64 50TG0047 — — — .0470 .0313 .465 1/16 50TG0062 — — — .0625 .0469 .470 5/64 50TG0078 — — — .0780 .0625 .475 3/32 50TG0094 — — — .0940 .0781 .710 7/64 50TG0109 — — — .1090 .0938 .715 1/8 — — 50TGHP0125 — .1250 .1150 .719 1/8 50TG0125 — — — .1250 .1094 .720 1/8 — — — 50TGCHP0125 .1250 .1200 .847 9/64 — 50TGC0141 — — .1406 .1356 .852 9/64 50TG0141 — — — .1410 .1250 .725 5/32 50TG0156 — — — .1560 .1406 .855 5/32 — 50TGC0156 — — .1563 .1513 .857 (continued) I16 WWW.WIDIA.COM Collets and Sleeves
