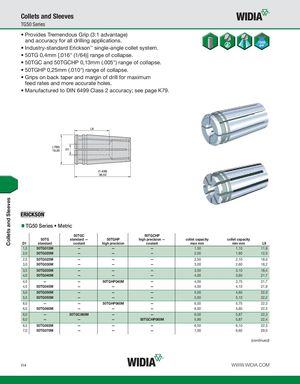

Collets and Sleeves TG50 Series • Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. • Industry-standard Erickson™ single-angle collet system. • 50TG 0,4mm [.016" (1/64)] range of collapse. • 50TGC and 50TGCHP 0,13mm (.005") range of collapse. • 50TGHP 0,25mm (.010") range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG50 Series • Metric 50TGC 50TGCHP 50TG standard — 50TGHP high precision — collet capacity collet capacity D1 standard coolant high precision coolant max mm min mm L9 1,5 50TG015M — — — 1,50 1,10 11,9 2,0 50TG020M — — — 2,00 1,60 12,0 2,5 50TG025M — — — 2,50 2,10 18,0 3,0 50TG030M — — — 3,00 2,60 18,2 3,5 50TG035M — — — 3,50 3,10 18,4 4,0 50TG040M — — — 4,00 3,60 21,7 4,0 — — 50TGHP040M — 4,00 3,75 21,7 4,5 50TG045M — — — 4,50 4,10 21,9 5,0 50TG050M — — — 5,00 4,60 22,0 5,5 50TG055M — — — 5,50 5,10 22,2 6,0 — — 50TGHP060M — 6,00 5,75 22,3 6,0 50TG060M — — — 6,00 5,60 22,3 6,0 — 50TGC060M — — 6,00 5,87 22,3 6,0 — — — 50TGCHP060M 5,90 5,87 22,4 6,5 50TG065M — — — 6,50 6,10 22,3 7,0 50TG070M — — — 7,00 6,60 29,0 (continued) I14 WWW.WIDIA.COM Collets and Sleeves
