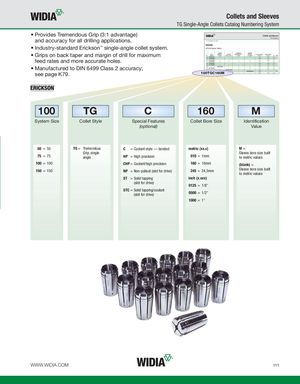

TG Single-Angle Collets Catalog Numbering System
- Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications.
- Industry-standard Erickson™ single-angle collet system.
- Grips on back taper and margin of drill for maximum feed rates and more accurate holes.
- Manufactured to DIN 6499 Class 2 accuracy; see page K79. 100TGC160M
| 100 | TG | C | 160 | M | |||
| System Size | Collet Style | Special Features | Collet Bore Size | Identification |
(optional) Value
| 50 = 50 | TG = Tremendous | C | = Coolant style — bonded | metric (xx.x) | M = |
| Grip, single | Sleeve bore size built | ||||
| 75 = 75 | angle | HP | = High precision | 010 = 1mm | to metric values |
| 100 = 100 | CHP = Coolant/high precision | 160 = 16mm | (blank) = | ||
| Sleeve bore size built | |||||
| 150 = 150 | NP | = Non-pullout (slot for drive) | 245 = 24,5mm | ||
| to metric values | |||||
| ST | = Solid tapping | inch (x.xxx) |
(slot for drive) 0125 = 1/8" STC = Solid tapping/coolant 0500 = 1/2"
(slot for drive) 1000 = 1"
