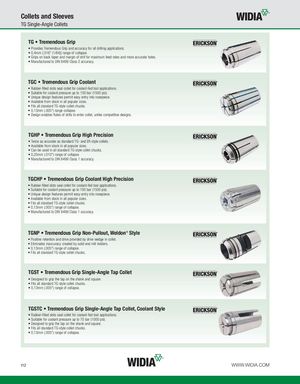

Collets and Sleeves TG Single-Angle Collets TG • Tremendous Grip • Provides Tremendous Grip and accuracy for all drilling applications. • 0,4mm [.016" (1/64)] range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Manufactured to DIN 6499 Class 2 accuracy. TGC • Tremendous Grip Coolant • Rubber-filled slots seal collet for coolant-fed tool applications. • Suitable for coolant pressure up to 100 bar (1500 psi). • Unique design features permit easy entry into nosepiece. • Available from stock in all popular sizes. • Fits all standard TG-style collet chucks. • 0,13mm (.005") range collapse. • Design enables flutes of drills to enter collet, unlike competitive designs. TGHP • Tremendous Grip High Precision • Twice as accurate as standard TG- and ER-style collets. • Available from stock in all popular sizes. • Can be used in all standard TG-style collet chucks. • 0,25mm (.010") range of collapse. • Manufactured to DIN 6499 Class 1 accuracy. TGCHP • Tremendous Grip Coolant High Precision • Rubber-filled slots seal collet for coolant-fed tool applications. • Suitable for coolant pressure up to 100 bar (1500 psi). • Unique design features permit easy entry into nosepiece. • Available from stock in all popular sizes. • Fits all standard TG-style collet chucks. • 0,13mm (.005") range of collapse. • Manufactured to DIN 6499 Class 1 accuracy. TGNP • Tremendous Grip Non-Pullout, Weldon® Style • Positive retention and drive provided by drive wedge in collet. • Eliminates inaccuracy created by solid end mill holders. • 0,13mm (.005") range of collapse. • Fits all standard TG-style collet chucks. TGST • Tremendous Grip Single-Angle Tap Collet • Designed to grip the tap on the shank and square. • Fits all standard TG-style collet chucks. • 0,13mm (.005") range of collapse. TGSTC • Tremendous Grip Single-Angle Tap Collet, Coolant Style • Rubber-filled slots seal collet for coolant-fed tool applications. • Suitable for coolant pressure up to 70 bar (1000 psi). • Designed to grip the tap on the shank and square. • Fits all standard TG-style collet chucks. • 0,13mm (.005") range of collapse. I12 WWW.WIDIA.COM
