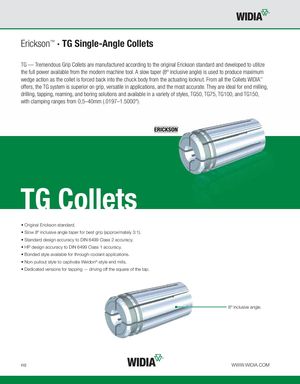

Erickson™ • TG Single-Angle Collets TG — Tremendous Grip Collets are manufactured according to the original Erickson standard and developed to utilize the full power available from the modern machine tool. A slow taper (8º inclusive angle) is used to produce maximum wedge action as the collet is forced back into the chuck body from the actuating locknut. From all the Collets WIDIA™ offers, the TG system is superior on grip, versatile in applications, and the most accurate. They are ideal for end milling, drilling, tapping, reaming, and boring solutions and available in a variety of styles, TG50, TG75, TG100, and TG150, with clamping ranges from 0,5–40mm (.0197–1.5000"). TG Collets • Original Erickson standard. • Slow 8º inclusive angle taper for best grip (approximately 3:1). • Standard design accuracy to DIN 6499 Class 2 accuracy. • HP design accuracy to DIN 6499 Class 1 accuracy. • Bonded style available for through-coolant applications. • Non-pullout style to captivate Weldon®-style end mills. • Dedicated versions for tapping — driving off the square of the tap. 8º inclusive angle. I10 WWW.WIDIA.COM
