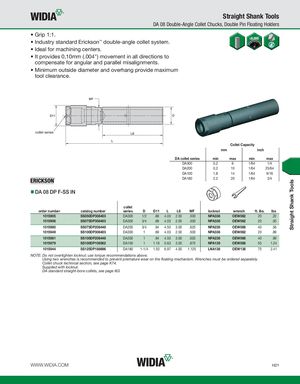

DA 08 Double-Angle Collet Chucks, Double Pin Floating Holders
- Grip 1:1.
- Industry standard Erickson™ double-angle collet system.
- Ideal for machining centers.
- It provides 0,10mm (.004") movement in all directions to compensate for angular and parallel misalignments.
- Minimum outside diameter and overhang provide maximum tool clearance.
collet series
DA 08 DP F-SS IN
Collet Capacity mm inch
| DA collet series | min | max | min | max | |
| DA300 | 0,2 | 6 | 1/64 | 1/4 | |
| DA200 | 0,2 | 10 | 1/64 | 25/64 | |
| DA100 | 1,8 | 14 | 1/64 | 9/16 | |
| DA180 | 2,2 | 20 | 1/64 | 3/4 |
collet
| order number | catalog number | series | D | D11 | L | LS | WF | locknut | wrench | ft. lbs. | lbs |
| 1015905 | SS050DP308403 | DA300 | 1/2 | .69 | 4.03 | 2.50 | .500 | NPA338 | OEW062 | 20 | .22 |
| 1015906 | SS075DP308403 | DA300 | 3/4 | .69 | 4.03 | 2.50 | .500 | NPA338 | OEW062 | 20 | .50 |
| 1015980 | SS075DP208448 | DA200 | 3/4 | .94 | 4.50 | 3.00 | .625 | NPA238 | OEW088 | 40 | .56 |
| 1015949 | SS100DP308403 | DA300 | 1 | .69 | 4.03 | 2.50 | .500 | NPA338 | OEW062 | 20 | .89 |
| 1015981 | SS100DP208448 | DA200 | 1 | .94 | 4.50 | 3.00 | .625 | NPA238 | OEW088 | 40 | .99 |
| 1015979 | SS100DP108562 | DA100 | 1 | 1.19 | 5.63 | 3.50 | .875 | NPA139 | OEW088 | 55 | 1.24 |
| 1015944 | SS125DP188696 | DA180 | 1-1/4 | 1.50 | 6.97 | 4.50 | 1.125 | LNA138 | OEW138 | 75 | 2.41 |
NOTE: Do not overtighten locknut; use torque recommendations above. Using two wrenches is recommended to prevent premature wear on the floating mechanism. Wrenches must be ordered separately. Collet chuck technical section, see page K74. Supplied with locknut.
DA standard straight-bore collets, see page I63.
