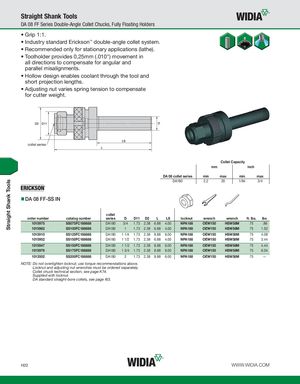

Straight Shank Tools Straight Shank Tools DA 08 FF Series Double-Angle Collet Chucks, Fully Floating Holders • Grip 1:1. • Industry standard Erickson™ double-angle collet system. • Recommended only for stationary applications (lathe). • Toolholder provides 0,25mm (.010") movement in all directions to compensate for angular and parallel misalignments. • Hollow design enables coolant through the tool and short projection lengths. • Adjusting nut varies spring tension to compensate for cutter weight. collet series Collet Capacity mm inch DA 08 collet series min max min max DA180 2,2 20 1/64 3/4 DA 08 FF-SS IN collet order number catalog number series D D11 D2 L LS locknut wrench wrench ft. lbs. lbs 1015975 SS075FC188688 DA180 3/4 1.73 2.38 6.88 4.00 NPA188 OEW150 HSW58M 75 .86 1015982 SS100FC188688 DA180 1 1.73 2.38 6.88 4.00 NPA188 OEW150 HSW58M 75 1.52 1015910 SS125FC188888 DA180 1 1/4 1.73 2.38 8.88 6.00 NPA188 OEW150 HSW58M 75 4.08 1015952 SS150FC188688 DA180 1 1/2 1.73 2.38 6.88 4.00 NPA188 OEW150 HSW58M 75 3.44 1015947 SS150FC188888 DA180 1 1/2 1.73 2.38 8.88 6.00 NPA188 OEW150 HSW58M 75 4.44 1015976 SS175FC188888 DA180 1 3/4 1.73 2.38 8.88 6.00 NPA188 OEW150 HSW58M 75 6.04 1013502 SS200FC188888 DA180 2 1.73 2.38 8.88 6.00 NPA188 OEW150 HSW58M 75 — NOTE: Do not overtighten locknut; use torque recommendations above. Locknut and adjusting nut wrenches must be ordered separately. Collet chuck technical section, see page K74. Supplied with locknut. DA standard straight-bore collets, see page I63. H22 WWW.WIDIA.COM
