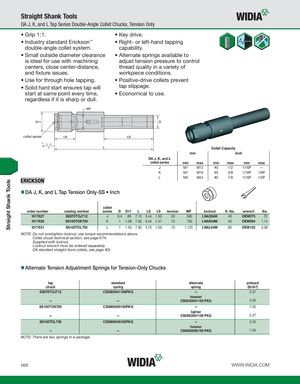

Straight Shank Tools Straight Shank Tools DA J, K, and L Tap Series Double-Angle Collet Chucks, Tension Only • Grip 1:1. • Key drive. • Industry standard Erickson™ • Right- or left-hand tapping double-angle collet system. capability. • Small outside diameter clearance • Alternate springs available to is ideal for use with machining adjust tension pressure to control centers, close center-distance, thread quality in a variety of and fixture issues. workpiece conditions. • Use for through hole tapping. • Positive-drive collets prevent • Solid hard start ensures tap will tap slippage. start at same point every time, • Economical to use. regardless if it is sharp or dull. collet series Collet Capacity mm inch DA J, K, and L collet series min max min max min max J M1 M12 #0 1/2 1/16P — K M1 M16 #0 5/8 1/16P 1/8P L M5 M24 #0 7/8 1/16P 1/2P DA J, K, and L Tap Tension Only-SS • Inch collet order number catalog number series D D11 L LS L9 tension WF locknut ft. lbs. wrench lbs 1017627 SS075TOJ712 J 3/4 .85 7.13 5.44 1.50 .50 .562 LNA204M 40 OEW075 .72 1017629 SS100TOK700 K 1 1.06 7.00 5.44 1.47 .75 .750 LNAK04M 45 OEW094 1.14 1017631 SS100TOL750 L 1 1.50 7.50 3.75 1.59 .75 1.125 LNAL04M 60 OEW125 2.08 NOTE: Do not overtighten locknut; use torque recommendations above. Collet chuck technical section, see page K74. Supplied with locknut. Locknut wrench must be ordered separately. DA standard straight-bore collets, see page I63. Alternate Tension Adjustment Springs for Tension-Only Chucks tap standard alternate preload chuck spring spring (lb/in²) SS075TOJ712 CS0563041156PKG — 2.37 heavier — — CS0540041150 PKG 3.50 SS100TOK700 CS0600055150PKG — 7.50 lighter — — CS0563041156 PKG 2.37 SS100TOL750 CS0600049125PKG — 3.25 heavier — — CS0600055150 PKG 7.50 NOTE: There are two springs in a package. H20 WWW.WIDIA.COM
