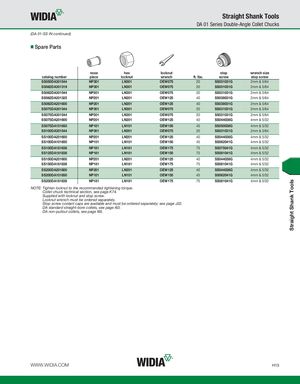

(DA 01-SS IN continued)

Spare Parts

nosehexlocknutstop wrench size
catalog numberpiecelocknutwrenchft. lbs.screw stop screw
SS050DA301544NP301LN301OEW07520SS031031G2mm & 5/64
SS062DA301319NP301LN301OEW07520SS031031G2mm & 5/64
SS062DA301544NP301LN301OEW07520SS031031G2mm & 5/64
SS062DA201325NP201LN201OEW12540SS038031G2mm & 5/64
SS062DA201600NP201LN201OEW12540SS038031G2mm & 5/64
SS075DA301344NP301LN301OEW07520SS031031G2mm & 5/64
SS075DA301544NP301LN301OEW07520SS031031G2mm & 5/64
SS075DA201600NP201LN201OEW12540SS044038G4mm & 5/32
SS075DA101650NP101LN101OEW15045SS050038G4mm & 5/32
SS100DA301544NP301LN301OEW07520SS031031G2mm & 5/64
SS100DA201600NP201LN201OEW12540SS044038G4mm & 5/32
SS100DA101650NP101LN101OEW15045SS062041G4mm & 5/32
SS100DA181638NP181LN181OEW17575SS075041G4mm & 5/32
SS125DA181838NP181LN181OEW15075SS081041G4mm & 5/32
SS150DA201600NP201LN201OEW12540SS044038G4mm & 5/32
SS150DA181838NP181LN181OEW17575SS081041G4mm & 5/32
SS200DA201800NP201LN201OEW12540SS044038G4mm & 5/32
SS200DA101850NP101LN101OEW15045SS062041G4mm & 5/32
SS200DA181838NP181LN181OEW17575SS081041G4mm & 5/32

NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65.
