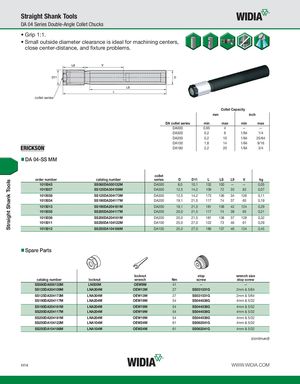

Straight Shank Tools Straight Shank Tools DA 04 Series Double-Angle Collet Chucks • Grip 1:1. • Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture problems. L collet series Collet Capacity mm inch DA collet series min max min max DA000 0,65 4 — — DA300 0,2 6 1/64 1/4 DA200 0,2 10 1/64 25/64 DA100 1,8 14 1/64 9/16 DA180 2,2 20 1/64 3/4 DA 04-SS MM collet order number catalog number series D D11 L LS L9 V kg 1015043 SS080DA000132M DA000 8,0 10,1 132 100 — — 0,05 1015037 SS125DA304109M DA300 12,5 14,2 109 72 33 63 0,07 1015038 SS125DA304173M DA300 12,5 14,2 173 136 34 126 0,11 1015034 SS190DA204117M DA200 19,1 21,5 117 74 37 65 0,19 1015013 SS190DA204181M DA200 19,1 21,5 181 138 42 124 0,29 1015035 SS200DA204117M DA200 20,0 21,5 117 74 38 65 0,21 1015036 SS200DA204181M DA200 20,0 21,5 181 138 37 128 0,32 1015011 SS250DA104122M DA100 25,0 27,0 122 73 46 61 0,29 1015012 SS250DA104186M DA100 25,0 27,0 186 137 46 124 0,45 Spare Parts locknut stop wrench size catalog number locknut wrench Nm screw stop screw SS080DA000132M LN000M OEW9M 41 — — SS125DA304109M LNA304M OEW13M 27 SS031031G 2mm & 5/64 SS125DA304173M LNA304M OEW13M 27 SS031031G 2mm & 5/64 SS190DA204117M LNA204M OEW19M 54 SS044038G 4mm & 5/32 SS190DA204181M LNA204M OEW19M 54 SS044038G 4mm & 5/32 SS200DA204117M LNA204M OEW19M 54 SS044038G 4mm & 5/32 SS200DA204181M LNA204M OEW19M 54 SS044038G 4mm & 5/32 SS250DA104122M LNA104M OEW24M 61 SS062041G 4mm & 5/32 SS250DA104186M LNA104M OEW24M 61 SS062041G 4mm & 5/32 (continued) H14 WWW.WIDIA.COM
