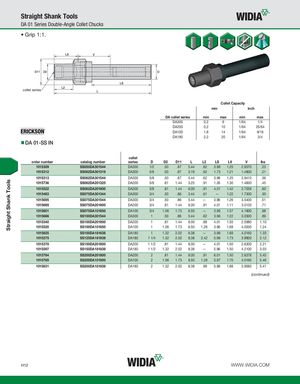

- Grip 1:1.
collet series
Collet Capacity mm inch
| DA collet series | min | max | min | max | |
| DA300 | 0,2 | 6 | 1/64 | 1/4 | |
| DA200 | 0,2 | 10 | 1/64 | 25/64 | |
| DA100 | 1,8 | 14 | 1/64 | 9/16 | |
| DA180 | 2,2 | 20 | 1/64 | 3/4 |
DA 01-SS IN
collet
| order number | catalog number | series | D | D2 | D11 | L | L2 | LS | L9 | V | lbs |
| 1015309 | SS050DA301544 | DA300 | 1/2 | .50 | .87 | 5.44 | .62 | 3.98 | 1.25 | 2.9370 | .23 |
| 1015312 | SS062DA301319 | DA300 | 5/8 | .50 | .87 | 3.19 | .62 | 1.73 | 1.21 | 1.4800 | .21 |
| 1015313 | SS062DA301544 | DA300 | 5/8 | .50 | .87 | 5.44 | .62 | 3.98 | 1.25 | 2.9410 | .36 |
| 1015736 | SS062DA201325 | DA200 | 5/8 | .81 | 1.44 | 3.25 | .91 | 1.26 | 1.30 | 1.4600 | .45 |
| 1015522 | SS062DA201600 | DA200 | 5/8 | .81 | 1.44 | 6.00 | .91 | 4.01 | 1.42 | 2.7559 | .60 |
| 1015483 | SS075DA301344 | DA300 | 3/4 | .50 | .86 | 3.44 | .61 | — | 1.22 | 1.7300 | .30 |
| 1015695 | SS075DA301544 | DA300 | 3/4 | .50 | .86 | 5.44 | — | 3.96 | 1.26 | 3.5400 | .51 |
| 1015669 | SS075DA201600 | DA200 | 3/4 | .81 | 1.44 | 6.00 | .91 | 4.01 | 1.11 | 3.0120 | .71 |
| 1015601 | SS075DA101650 | DA100 | 3/4 | 1.06 | 1.73 | 6.50 | — | 3.96 | 1.57 | 4.1800 | .98 |
| 1015666 | SS100DA301544 | DA300 | 1 | .50 | .86 | 5.44 | .62 | 3.96 | 1.22 | 3.0300 | .89 |
| 1015340 | SS100DA201600 | DA200 | 1 | .81 | 1.44 | 6.00 | .88 | 4.01 | 1.50 | 2.5980 | 1.10 |
| 1015520 | SS100DA101650 | DA100 | 1 | 1.06 | 1.73 | 6.50 | 1.26 | 3.96 | 1.69 | 4.0200 | 1.24 |
| 1015625 | SS100DA181638 | DA180 | 1 | 1.32 | 2.02 | 6.38 | — | 3.96 | 1.69 | 4.0160 | 1.33 |
| 1015375 | SS125DA181838 | DA180 | 1 1/4 | 1.32 | 2.02 | 8.38 | 2.42 | 5.96 | 1.73 | 3.9800 | 2.12 |
| 1015378 | SS150DA201600 | DA200 | 1 1/2 | .81 | 1.44 | 6.00 | — | 4.01 | 1.50 | 2.6300 | 2.21 |
| 1015597 | SS150DA181838 | DA180 | 1 1/2 | 1.32 | 2.02 | 8.38 | — | 5.96 | 1.50 | 4.2100 | 3.03 |
| 1015764 | SS200DA201800 | DA200 | 2 | .81 | 1.44 | 8.00 | .91 | 6.01 | 1.50 | 2.6378 | 5.45 |
| 1015765 | SS200DA101850 | DA100 | 2 | 1.06 | 1.73 | 8.50 | 1.26 | 5.97 | 1.70 | 4.0160 | 5.46 |
| 1015631 | SS200DA181838 | DA180 | 2 | 1.32 | 2.02 | 8.38 | .99 | 5.98 | 1.88 | 5.9060 | 5.41 |
(continued)
