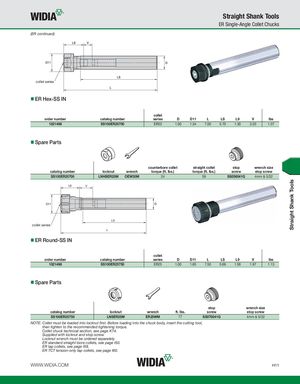

Каталог Widia инструментальная оснастка - страница 891
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
(ER continued)
collet series
ER Hex-SS IN
collet
| order number | catalog number | series | D | D11 | L | LS | L9 | V | lbs | |
| 1021496 | SS100ER20700 | ER20 | 1.00 | 1.34 | 7.00 | 5.70 | 1.30 | 2.20 | 1.07 |
Spare Parts
| counterbore collet | straight collet | stop | wrench size | |||||||
| catalog number | locknut | wrench | torque (ft. lbs.) | torque (ft. lbs.) | screw | stop screw | ||||
| SS100ER20700 | LNHSER20M | OEW30M | 24 | 59 | SS056041G | 4mm & 5/32 |
L9 V
D11
collet series
ER Round-SS IN
LS
L
collet
| order number | catalog number | series | D | D11 | L | LS | L9 | V | lbs | |
| 1021498 | SS100ER25750 | ER25 | 1.00 | 1.65 | 7.50 | 5.69 | 1.58 | 1.97 | 1.13 |
Spare Parts
stop wrench size
| catalog number | locknut | wrench | ft. lbs. | screw | stop screw | |
| SS100ER25750 | LNSER25M | ER25WM | 77 | SS075041G | 4mm & 5/32 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60.
