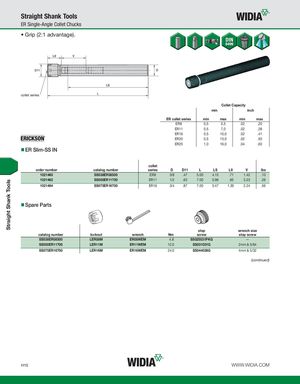

- Grip (2:1 advantage).
collet series
ER Slim-SS IN
Collet Capacity mm inch
| ER collet series | min | max | min | max |
| ER8 | 0,5 | 0,5 | .02 | .20 |
| ER11 | 0,5 | 7,0 | .02 | .28 |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
collet
| order number | catalog number | series | D | D11 | L | LS | L9 | V | lbs | |
| 1021460 | SS038ER08500 | ER8 | 3/8 | .47 | 5.00 | 4.15 | .71 | 1.42 | .10 | |
| 1021462 | SS050ER11700 | ER11 | 1/2 | .63 | 7.00 | 5.96 | .95 | 3.23 | .26 | |
| 1021494 | SS075ER16700 | ER16 | 3/4 | .87 | 7.00 | 5.47 | 1.30 | 2.24 | .56 |
Spare Parts
stop wrench size
| catalog number | locknut | wrench | Nm | screw | stop screw | ||
| SS038ER08500 | LER08M | ER08WEM | 4.8 | SS025031PKG | — | ||
| SS050ER11700 | LER11M | ER11WEM | 12.0 | SS031031G | 2mm & 5/64 | ||
| SS075ER16700 | LER16M | ER16WEM | 24.0 | SS044038G | 4mm & 5/32 |
(continued)
