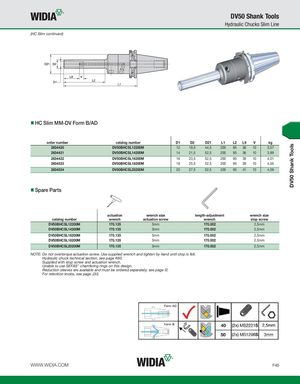

(HC Slim continued)
HC Slim MM-DV Form B/AD
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L9 | V | kg |
| 2634420 | DV50BHCSL12200M | 12 | 19,5 | 44,5 | 200 | 95 | 36 | 10 | 3,57 |
| 2634421 | DV50BHCSL14200M | 14 | 21,5 | 52,5 | 200 | 95 | 36 | 10 | 3,99 |
| 2634422 | DV50BHCSL16200M | 16 | 23,5 | 52,5 | 200 | 95 | 39 | 10 | 4,01 |
| 2634533 | DV50BHCSL18200M | 18 | 25,5 | 52,5 | 200 | 95 | 39 | 10 | 4,05 |
| 2634534 | DV50BHCSL20200M | 20 | 27,5 | 52,5 | 200 | 95 | 41 | 10 | 4,09 |
Spare Parts
| actuation | wrench size | length-adjustment | wrench size | ||
| catalog number | wrench | actuation screw | wrench | stop screw | |
| DV50BHCSL12200M | 170.135 | 5mm | 170.002 | 2,5mm | |
| DV50BHCSL14200M | 170.135 | 5mm | 170.002 | 2,5mm | |
| DV50BHCSL16200M | 170.135 | 5mm | 170.002 | 2,5mm | |
| DV50BHCSL18200M | 170.135 | 5mm | 170.002 | 2,5mm | |
| DV50BHCSL20200M | 170.135 | 5mm | 170.002 | 2,5mm |
NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33.
