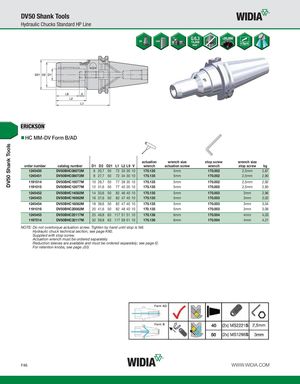

Каталог Widia инструментальная оснастка - страница 826
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
HC MM-DV Form B/AD
| actuation | wrench size | stop screw | wrench size | |||||
| order number | catalog number | D1 D2 D21 L1 L2 L9 V | wrench | actuation screw | wrench | stop screw | kg | |
| 1245450 | DV50BHC06072M | 6 25,7 50 | 72 33 30 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,87 |
| 1245451 | DV50BHC08072M | 8 27,7 50 | 72 34 30 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,90 |
| 1191014 | DV50BHC10077M | 10 29,7 50 | 77 39 35 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,92 |
| 1191015 | DV50BHC12077M | 12 31,6 50 | 77 40 35 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,93 |
| 1245452 | DV50BHC14082M | 14 33,6 50 | 82 46 40 10 | 170.135 | 5mm | 170.003 | 3mm | 2,96 |
| 1245453 | DV50BHC16082M | 16 37,6 50 | 82 47 40 10 | 170.135 | 5mm | 170.003 | 3mm | 3,02 |
| 1245454 | DV50BHC18082M | 18 39,6 50 | 82 47 40 10 | 170.135 | 5mm | 170.003 | 3mm | 3,04 |
| 1191016 | DV50BHC20082M | 20 41,6 50 | 82 48 40 10 | 170.135 | 5mm | 170.003 | 3mm | 3,06 |
| 1245455 | DV50BHC25117M | 25 49,8 63 117 51 51 10 | 170.136 | 6mm | 170.004 | 4mm | 4,03 | |
| 1197514 | DV50BHC32117M | 32 59,8 63 117 59 51 10 | 170.136 | 6mm | 170.004 | 4mm | 4,21 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33.
