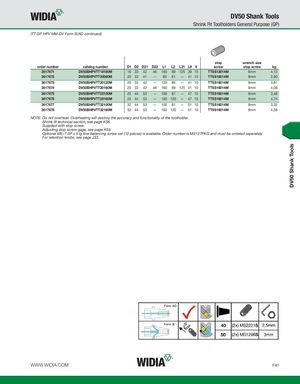

(TT GP HPV MM-DV Form B/AD continued)
stop wrench size
| order number | catalog number D1 D2 D21 | D22 | L1 | L2 | L21 L9 V | stop screw screw | kg | |||||
| 3617671 | DV50BHPVTT18160M | 18 | 33 | 42 | 46 | 160 | 69 | 125 39 10 | TTSS12014M | 6mm | 4,13 | |
| 3617672 | DV50BHPVTT20080M | 20 | 33 | 41 | — | 80 | 61 | — | 41 10 | TTSS16014M | 8mm | 2,90 |
| 3617673 | DV50BHPVTT20120M | 20 | 33 | 42 | — | 120 | 85 | — | 41 10 | TTSS16014M | 8mm | 3,61 |
| 3617674 | DV50BHPVTT20160M | 20 | 33 | 42 | 46 | 160 | 69 | 125 41 10 | TTSS16014M | 8mm | 4,08 | |
| 3617675 | DV50BHPVTT25100M | 25 | 44 | 53 | — | 100 | 81 | — | 47 10 | TTSS16014M | 8mm | 3,48 |
| 3617676 | DV50BHPVTT25160M | 25 | 44 | 53 | — | 160 120 | — | 47 10 | TTSS16014M | 8mm | 4,74 | |
| 3617677 | DV50BHPVTT32100M | 32 | 44 | 53 | — | 100 | 81 | — | 51 10 | TTSS16014M | 8mm | 3,32 |
| 3617678 | DV50BHPVTT32160M | 32 | 44 | 53 | — | 160 120 | — | 51 10 | TTSS16014M | 8mm | 4,58 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) is available. Order number is MS127PKG and must be ordered separately. For retention knobs, see page J33.
