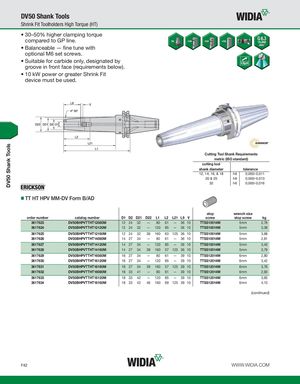

DV50 Shank Tools DV50 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-DV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3617623 DV50BHPVTTHT12080M 12 24 32 — 80 61 — 36 10 TTSS10014M 5mm 2,76 3617624 DV50BHPVTTHT12120M 12 24 32 — 120 85 — 36 10 TTSS10014M 5mm 3,38 3617625 DV50BHPVTTHT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 3,68 3617626 DV50BHPVTTHT14080M 14 27 34 — 80 61 — 36 10 TTSS10014M 5mm 2,81 3617627 DV50BHPVTTHT14120M 14 27 34 — 120 85 — 36 10 TTSS10014M 5mm 3,45 3617628 DV50BHPVTTHT14160M 14 27 34 39 160 57 125 36 10 TTSS10014M 5mm 3,79 3617629 DV50BHPVTTHT16080M 16 27 34 — 80 61 — 39 10 TTSS12014M 6mm 2,80 3617630 DV50BHPVTTHT16120M 16 27 34 — 120 85 — 39 10 TTSS12014M 6mm 3,42 3617631 DV50BHPVTTHT16160M 16 27 34 39 160 57 125 39 10 TTSS12014M 6mm 3,76 3617632 DV50BHPVTTHT18080M 18 33 41 — 80 61 — 39 10 TTSS12014M 6mm 2,93 3617633 DV50BHPVTTHT18120M 18 33 42 — 120 85 — 39 10 TTSS12014M 6mm 3,65 3617634 DV50BHPVTTHT18160M 18 33 42 46 160 69 125 39 10 TTSS12014M 6mm 4,13 (continued) F42 WWW.WIDIA.COM
