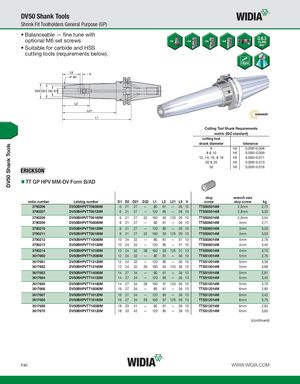

DV50 Shank Tools DV50 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-DV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3790206 DV50BHPVTT06080M 6 21 27 — 80 61 — 26 10 TTSS05014M 2,5mm 2,72 3790207 DV50BHPVTT06120M 6 21 27 — 120 85 — 26 10 TTSS05014M 2,5mm 3,30 3790208 DV50BHPVTT06160M 6 21 27 32 160 50 125 26 10 TTSS05014M 2,5mm 3,54 3790209 DV50BHPVTT08080M 8 21 27 — 80 61 — 26 10 TTSS06014M 3mm 2,71 3790210 DV50BHPVTT08120M 8 21 27 — 120 85 — 26 10 TTSS06014M 3mm 3,29 3790211 DV50BHPVTT08160M 8 21 27 32 160 50 125 26 10 TTSS06014M 3mm 3,53 3790212 DV50BHPVTT10080M 10 24 32 — 80 61 — 31 10 TTSS08014M 4mm 2,78 3790213 DV50BHPVTT10120M 10 24 32 — 120 85 — 31 10 TTSS08014M 4mm 3,40 3790214 DV50BHPVTT10160M 10 24 32 36 160 63 125 31 10 TTSS08014M 4mm 3,70 3617660 DV50BHPVTT12080M 12 24 32 — 80 61 — 36 10 TTSS10014M 5mm 2,76 3617661 DV50BHPVTT12120M 12 24 32 — 120 85 — 36 10 TTSS10014M 5mm 3,38 3617662 DV50BHPVTT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 3,68 3617663 DV50BHPVTT14080M 14 27 34 — 80 61 — 36 10 TTSS10014M 5mm 2,81 3617664 DV50BHPVTT14120M 14 27 34 — 120 85 — 36 10 TTSS10014M 5mm 3,45 3617665 DV50BHPVTT14160M 14 27 34 39 160 57 125 36 10 TTSS10014M 5mm 3,79 3617666 DV50BHPVTT16080M 16 27 34 — 80 61 — 39 10 TTSS12014M 6mm 2,80 3617667 DV50BHPVTT16120M 16 27 34 — 120 85 — 39 10 TTSS12014M 6mm 3,42 3617668 DV50BHPVTT16160M 16 27 34 39 160 57 125 39 10 TTSS12014M 6mm 3,76 3617669 DV50BHPVTT18080M 18 33 41 — 80 61 — 39 10 TTSS12014M 6mm 2,93 3617670 DV50BHPVTT18120M 18 33 42 — 120 85 — 39 10 TTSS12014M 6mm 3,65 (continued) F40 WWW.WIDIA.COM
