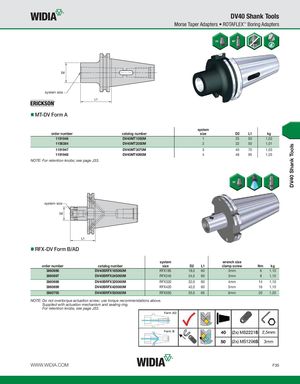

Morse Taper Adapters • ROTAFLEX™ Boring Adapters

system size

MT-DV Form A

order numbercatalog numbersystem sizeD2L1kg
1191946DV40MT1050M125501,03
1156384DV40MT2050M232501,01
1191947DV40MT3070M340701,03
1191948DV40MT4095M448951,25

NOTE: For retention knobs; see page J33.

system size

RFX-DV Form B/AD

order numbercatalog numbersystem sizeD2L1wrench size clamp screwNmkg
3860696DV40BRFX185060MRFX18518,5603mm61,10
3860697DV40BRFX245060MRFX24524,5603mm81,10
3860698DV40BRFX320060MRFX32032,0604mm141,10
3860699DV40BRFX420060MRFX42042,0605mm161,10
3860700DV40BRFX550065MRFX55055,0656mm201,20

NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33.
