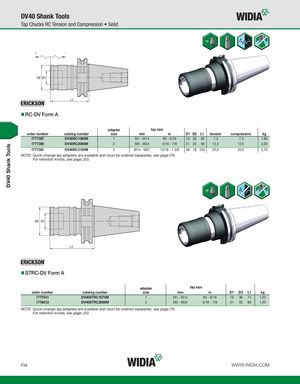

DV40 Shank Tools DV40 Shank Tools Tap Chucks RC Tension and Compression • Solid L1 RC-DV Form A adapter tap size order number catalog number size mm in D1 D2 L1 tension compression kg 1777397 DV40RC1060M 1 M1 - M14 #0 - 9/16 19 36 60 7,5 7,5 1,80 1777380 DV40RC2098M 2 M5 - M24 5/16 - 7/8 31 53 98 12,5 12,5 2,00 1777381 DV40RC3150M 3 M14 - M27 13/16 - 1 3/8 48 78 150 20,0 20,0 2,70 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. STRC-DV Form A adapter tap size order number catalog number size mm in D1 D2 L1 kg 1777541 DV40STRC1074M 1 M1 - M14 #0 - 9/16 19 36 74 1,20 1778012 DV40STRC2089M 2 M5 - M24 5/16 - 7/8 31 53 89 1,50 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. F34 WWW.WIDIA.COM
