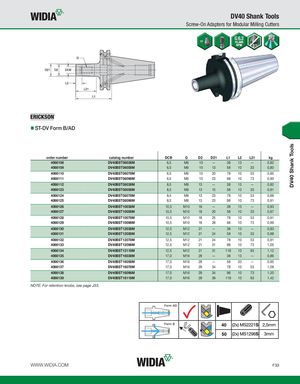

DV40 Shank Tools DV40 Shank Tools Screw-On Adapters for Modular Milling Cutters ST-DV Form B/AD order number catalog number DCB G D2 D21 L1 L2 L21 kg 4066108 DV40BST06038M 6,5 M6 10 — 38 13 — 0,82 4066109 DV40BST06058M 6,5 M6 10 13 58 10 33 0,80 4066110 DV40BST06078M 6,5 M6 10 20 78 10 53 0,85 4066111 DV40BST06098M 6,5 M6 10 23 98 10 73 0,90 4066112 DV40BST08038M 8,5 M8 13 — 38 13 — 0,82 4066123 DV40BST08058M 8,5 M8 13 15 58 10 33 0,81 4066124 DV40BST08078M 8,5 M8 13 23 78 10 53 0,88 4066125 DV40BST08098M 8,5 M8 13 23 98 10 73 0,91 4066126 DV40BST10038M 10,5 M10 18 — 38 13 — 0,83 4066127 DV40BST10058M 10,5 M10 18 20 58 10 33 0,87 4066128 DV40BST10078M 10,5 M10 18 25 78 10 53 0,91 4066129 DV40BST10098M 10,5 M10 18 28 98 10 73 0,99 4066130 DV40BST12038M 12,5 M12 21 — 38 13 — 0,83 4066131 DV40BST12058M 12,5 M12 21 24 58 10 33 0,88 4066132 DV40BST12078M 12,5 M12 21 24 78 10 53 0,91 4066133 DV40BST12098M 12,5 M12 21 31 98 10 73 1,05 4066134 DV40BST12118M 12,5 M12 21 31 118 10 93 1,12 4066135 DV40BST16038M 17,0 M16 29 — 38 13 — 0,86 4066136 DV40BST16058M 17,0 M16 29 — 58 33 — 0,95 4066137 DV40BST16078M 17,0 M16 29 34 78 10 53 1,09 4066138 DV40BST16098M 17,0 M16 29 34 98 10 73 1,20 4066139 DV40BST16118M 17,0 M16 29 39 118 10 93 1,42 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM F33
