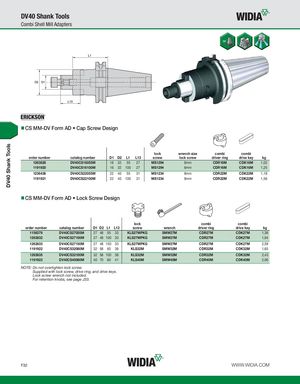

Каталог Widia инструментальная оснастка - страница 812
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
CS MM-DV Form AD • Cap Screw Design
| order number | catalog number | D1 | D2 | L1 | L13 | lock screw | wrench size lock screw | combi driver ring | combi drive key | kg |
| 1263828 | DV40CS16055M | 16 | 32 | 55 | 27 | MS1294 | 6mm | CDR16M | CDK16M | 1,02 |
| 1191920 | DV40CS16100M | 16 | 32 | 100 | 27 | MS1294 | 6mm | CDR16M | CDK16M | 1,25 |
| 1236436 | DV40CS22055M | 22 | 40 | 55 | 31 | MS1234 | 8mm | CDR22M | CDK22M | 1,18 |
| 1191921 | DV40CS22100M | 22 | 40 | 100 | 31 | MS1234 | 8mm | CDR22M | CDK22M | 1,56 |
CS MM-DV Form AD • Lock Screw Design
| order number | catalog number | D1 D2 | L1 L13 | lock screw | wrench | combi driver ring | combi drive key | kg |
| 1156379 | DV40CS27055M | 27 48 | 55 33 | KLS27MPKG | SMW27M | CDR27M | CDK27M | 1,36 |
| 1263832 | DV40CS27100M | 27 48 | 100 33 | KLS27MPKG | SMW27M | CDR27M | CDK27M | 1,94 |
| 1263833 | DV40CS27150M | 27 48 | 150 33 | KLS27MPKG | SMW27M | CDR27M | CDK27M | 2,59 |
| 1191922 | DV40CS32060M | 32 58 | 60 38 | KLS32M | SMW32M | CDR32M | CDK32M | 1,65 |
| 1263835 | DV40CS32100M | 32 58 | 100 38 | KLS32M | SMW32M | CDR32M | CDK32M | 2,43 |
| 1191923 | DV40CS40060M | 40 70 | 60 41 | KLS40M | SMW40M | CDR40M | CDK40M | 2,06 |
NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For retention knobs, see page J33.
