(SMC continued)

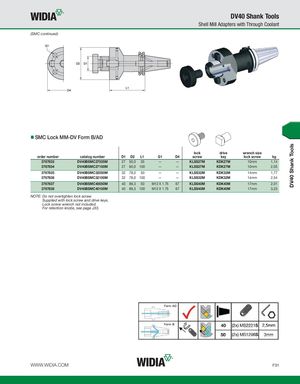

SMC Lock MM-DV Form B/AD
| order number | catalog number | D1 D2 | L1 | G1 D4 | lock screw | drive key | wrench size lock screw | kg |
| 3767833 | DV40BSMC27035M | 27 50,0 | 35 | — — | KLSS27M | KDK27M | 10mm | 1,14 |
| 3767834 | DV40BSMC27100M | 27 60,0 | 100 | — — | KLSS27M | KDK27M | 10mm | 2,05 |
| 3767835 | DV40BSMC32050M | 32 78,0 | 50 | — — | KLSS32M | KDK32M | 14mm | 1,77 |
| 3767836 | DV40BSMC32100M | 32 78,0 | 100 | — — | KLSS32M | KDK32M | 14mm | 2,54 |
| 3767837 | DV40BSMC40050M | 40 89,3 | 50 | M12 X 1.75 67 | KLSS40M | KDK40M | 17mm | 2,01 |
| 3767838 | DV40BSMC40100M | 40 89,3 | 100 | M12 X 1.75 67 | KLSS40M | KDK40M | 17mm | 3,23 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Lock screw wrench not included. For retention knobs, see page J33.
