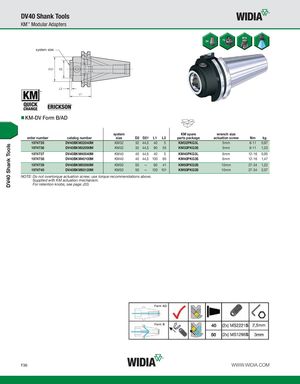

DV40 Shank Tools DV40 Shank Tools KM™ Modular Adapters system size D21 D2 L2 L1 KM-DV Form B/AD system KM spare wrench size order number catalog number size D2 D21 L1 L2 parts package actuation screw Nm kg 1974735 DV40BKM32040M KM32 32 44,5 40 5 KM32PKG3L 5mm 8-11 0,97 1974736 DV40BKM32090M KM32 32 44,5 90 55 KM32PKG3S 5mm 8-11 1,23 1974737 DV40BKM40040M KM40 40 44,5 40 5 KM40PKG3L 6mm 12-16 0,95 1974738 DV40BKM40100M KM40 40 44,5 100 65 KM40PKG3S 6mm 12-16 1,47 1974739 DV40BKM50060M KM50 50 — 60 41 KM50PKG3S 10mm 27-34 1,22 1974740 DV40BKM50120M KM50 50 — 120 101 KM50PKG3S 10mm 27-34 2,07 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. For retention knobs, see page J33. F36 WWW.WIDIA.COM
