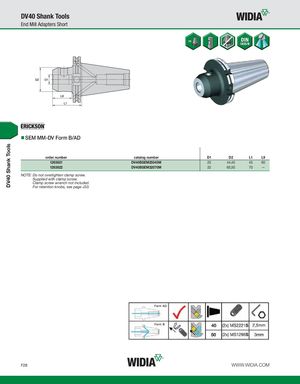

DV40 Shank Tools DV40 Shank Tools End Mill Adapters Short SEM MM-DV Form B/AD order number catalog number D1 D2 L1 L9 1263821 DV40BSEM25045M 25 44,45 45 60 1263822 DV40BSEM32070M 32 65,50 70 — NOTE: Do not overtighten clamp screw. Supplied with clamp screw. Clamp screw wrench not included. For retention knobs, see page J33. F28 WWW.WIDIA.COM
